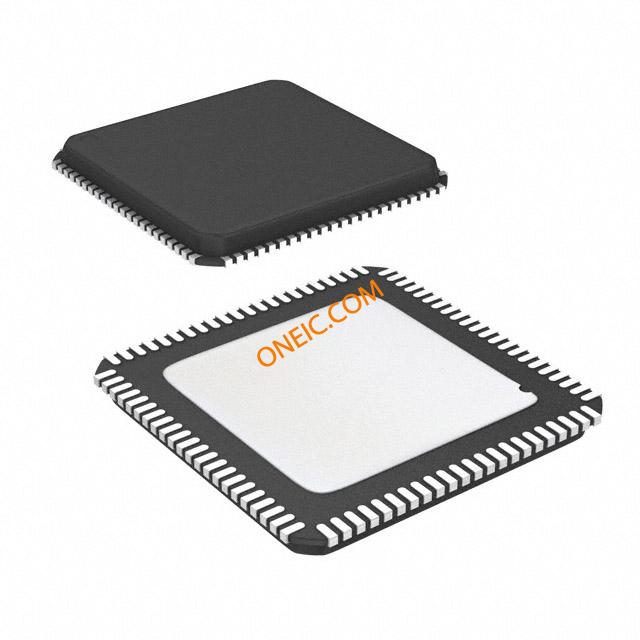

AD9915BCPZ

ANALOG DEVICES  AD9915BCPZ  受限产品, 芯片, 直接数字合成器, 带12位数模转换器, 88LFCSP

The is a Direct Digital Synthesizer DDS featuring a 12-bit DAC. The AD9915 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency agile analog output sinusoidal waveform at up to 1.0GHz. The AD9915 enables fast frequency hopping and fine tuning resolution 64-bit capable using programmable modulus mode. The AD9915 also offers fast phase and amplitude hopping capability. The frequency tuning and control words are loaded into the AD9915 via a serial or parallel input/output port. The AD9915 also supports a user defined linear sweep mode of operation for generating linear swept waveforms of frequency, phase or amplitude.

.

2.5GSPS Internal clock speed

.

Frequency tuning resolution to 135pHz

.

16-bit Phase tuning resolution

.

12-bit Amplitude scaling

.

Programmable modulus

.

Automatic linear and nonlinear frequency sweeping capability

.

32-bit Parallel datapath interface

.

8 Frequency/phase offset profiles

.

-128dBc/Hz 1Hz offset at 978MHz Phase noise

.

<-57dBc Wideband SFDR

.

Serial or parallel input/output control

.

Software and hardware controlled power-down

.

PLL REF CLK multiplier

.

Phase modulation capability

.

Amplitude modulation capability

.

Multichip synchronization
