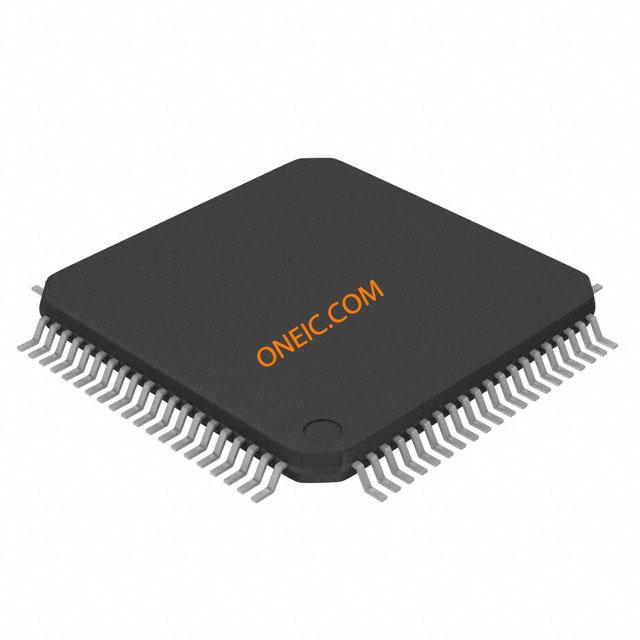

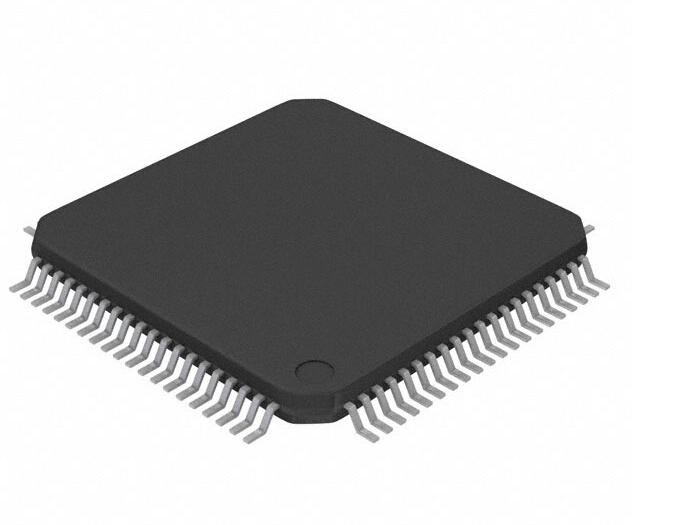

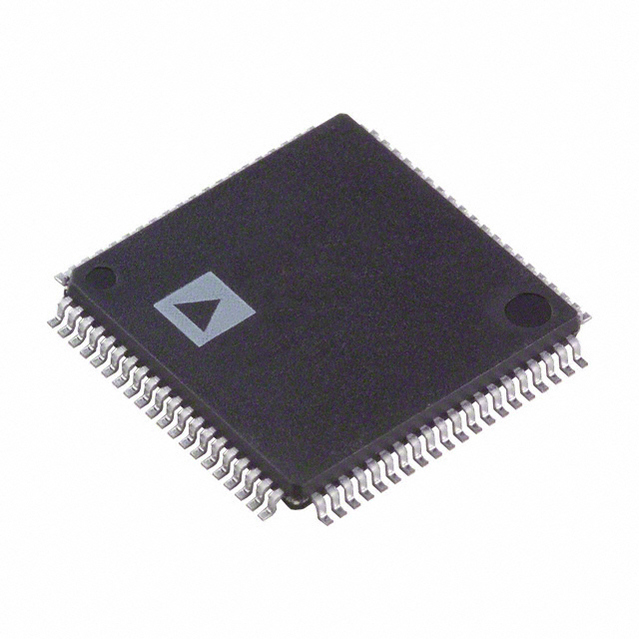

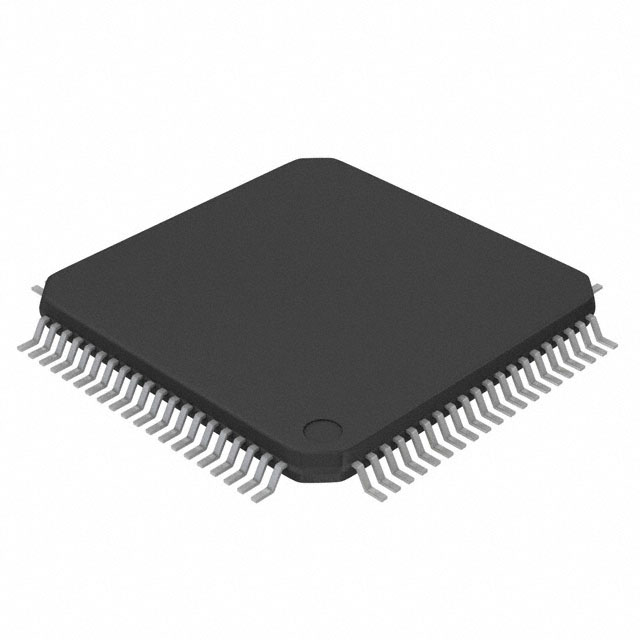

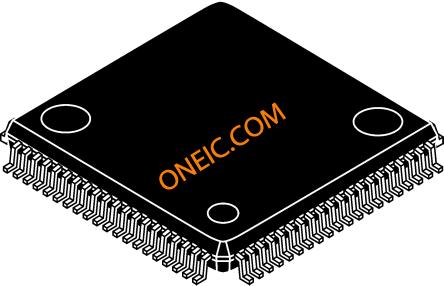

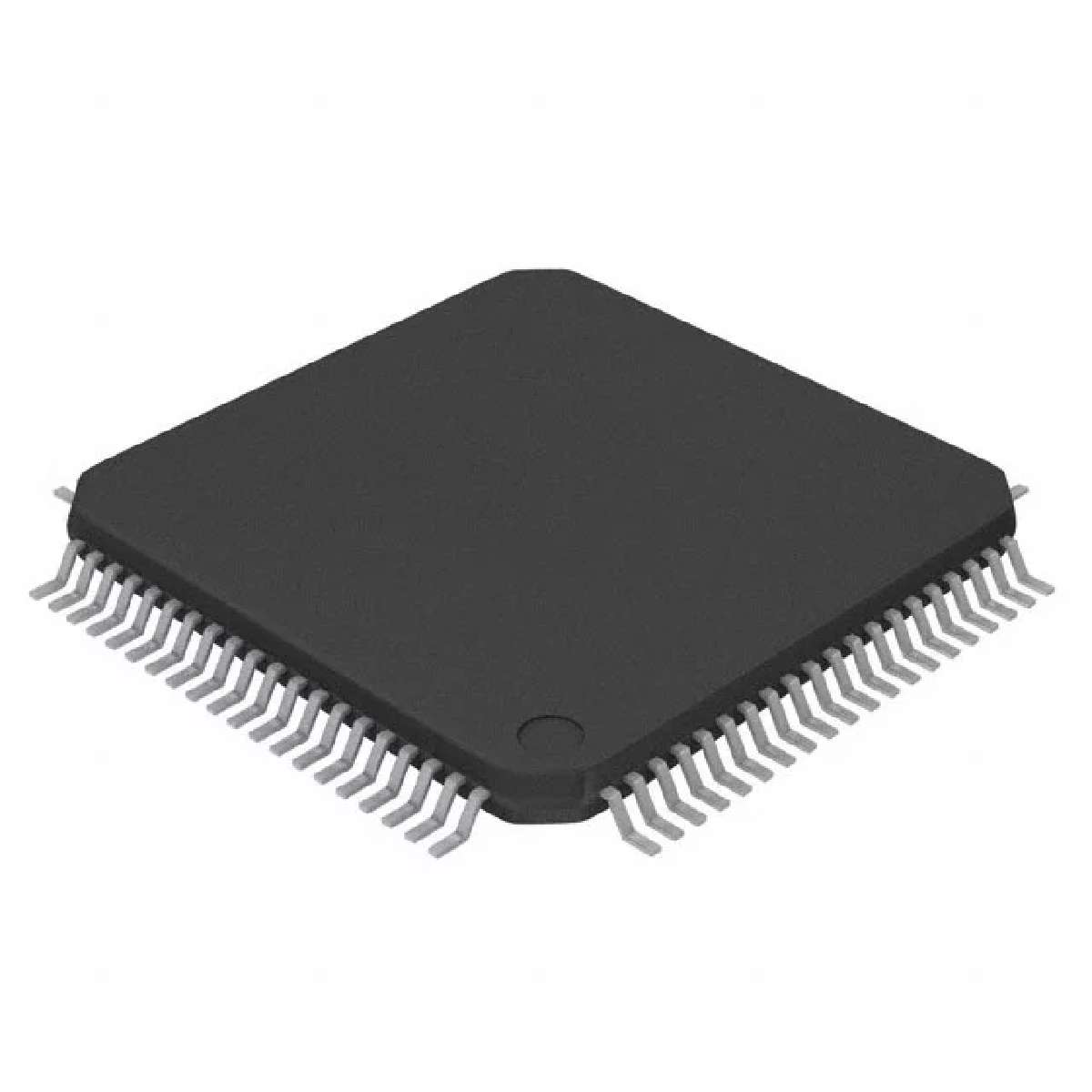

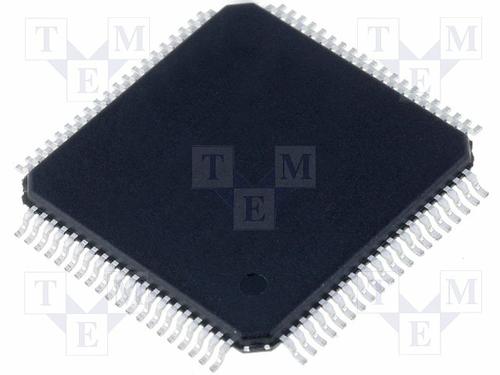

AD9854ASTZ

ANALOG DEVICES  AD9854ASTZ  芯片, 正交频率合成器 DDS 300MSPS

The is a Digital Synthesizer, highly integrated device that uses advanced DDS technology, coupled with two internal high speed, high performance quadrature DACs to form a digitally programmable I and Q synthesizer function. When referenced to an accurate clock source, the AD9854 generates highly stable, frequency-phase, amplitude-programmable sine and cosine outputs. Maintaining 17-bit ensures excellent SFDR. The circuit architecture of the AD9854 allows the generation of simultaneous quadrature output signals at frequencies up to 150MHz, which can be digitally tuned at a rate of up to 100 million new frequencies per second. The 12-bit I and Q DACs, coupled with the innovative DDS architecture, provide excellent wideband and narrow-band output SFDR.

.

300MHz internal clock rate

.

FSK, BPSK, PSK, chirp, AM operation

.

Dual integrated 12-bit digital-to-analog converters DACs

.

Ultrahigh speed comparator, 3ps rms jitter

.

Excellent dynamic performance 80dB SFDR at 100MHz ±1MHz AOUT

.

4x to 20x Programmable reference clock multiplier

.

Dual 48-bit programmable frequency registers

.

Dual 14-bit programmable phase offset registers

.

12-bit Programmable amplitude modulation and

.

ON/OFF output shaped keying function

.

Single-pin FSK and BPSK data interfaces

.

PSK capability via input/output interface

.

Linear or nonlinear FM chirp functions with single-pin

.

frequency hold function

.

Frequency-ramped FSK

.

<25ps RMS total jitter in clock generator mode

.

Automatic bidirectional frequency sweeping

.

Sinx/x correction

.

10MHz Serial 2- or 3-wire SPI compatible

.

100MHz Parallel 8-bit programming
