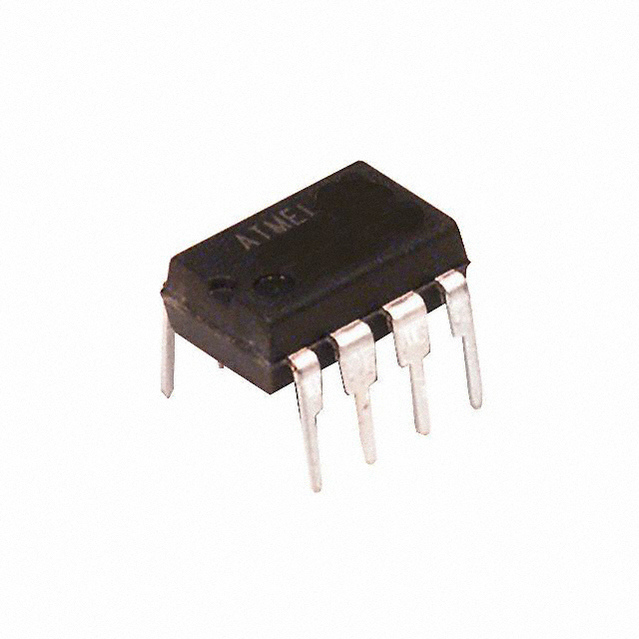

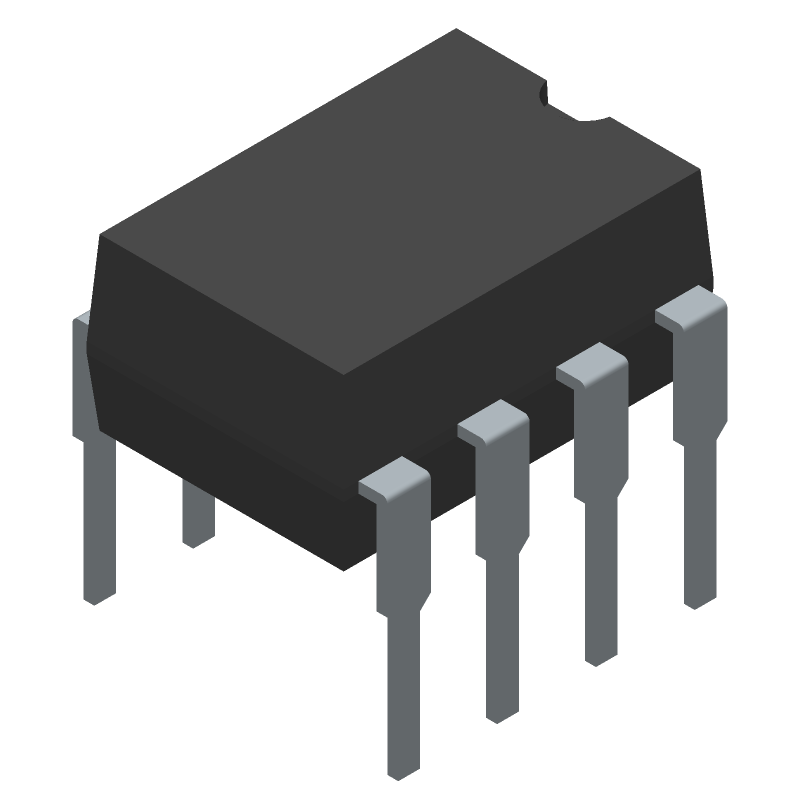

AT93C46D-PU

ATMEL  AT93C46D-PU  EEPROM, 1 Kbit, 128 x 8位 / 64 x 16位, 2 MHz, 串行微丝, DIP, 8 引脚

The is a MICROWIRE-compatible 1kB 3-wire serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as 64 words of 16-bit each when the ORG pin is connected to VCC and 128 words of 8-bit each when the ORG pin is tied to ground. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The AT93C46D is enabled through the chip select pin CS and accessed via a 3-wire serial interface consisting of data input DI, data output DO and shift clock SK. Upon receiving a read instruction at DI, the address is decoded and the data is clocked out serially on the DO pin. The write cycle is completely self-timed and no separate erase cycle is required before Write. The write cycle is only enabled when the part is in the Erase/write enable state. When CS is brought high following the initiation of a write cycle, the DO pin outputs the ready/busy status of the part.

.

Low-voltage operation

.

User-selectable internal organization

.

2MHz Clock rate 5V

.

Self-timed write cycle 5ms maximum

.

High reliability

.

Endurance - 1000000 write cycles

.

Data retention - 100 years
