AD9857ASTZ

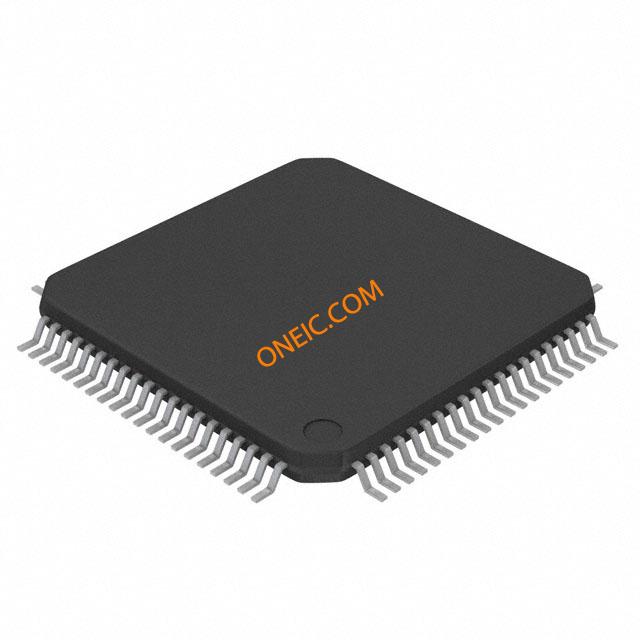

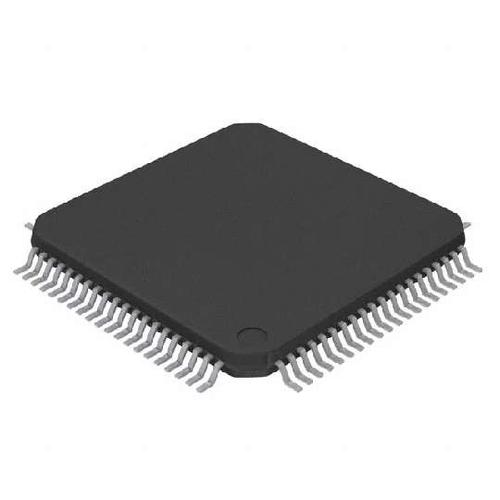

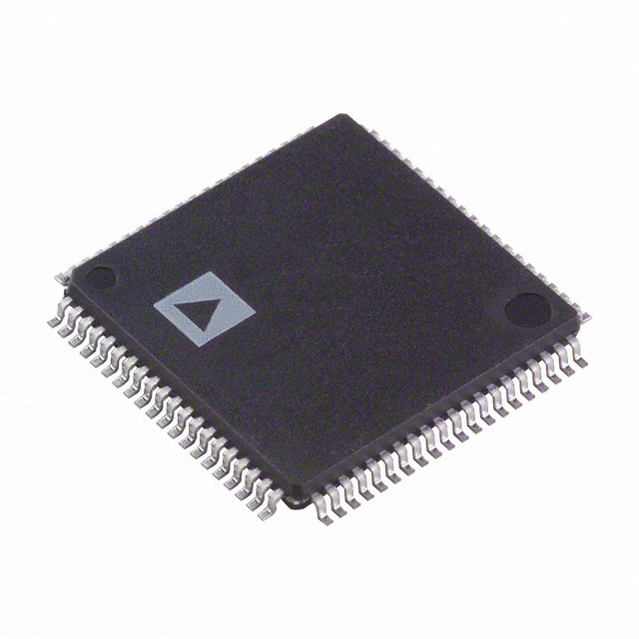

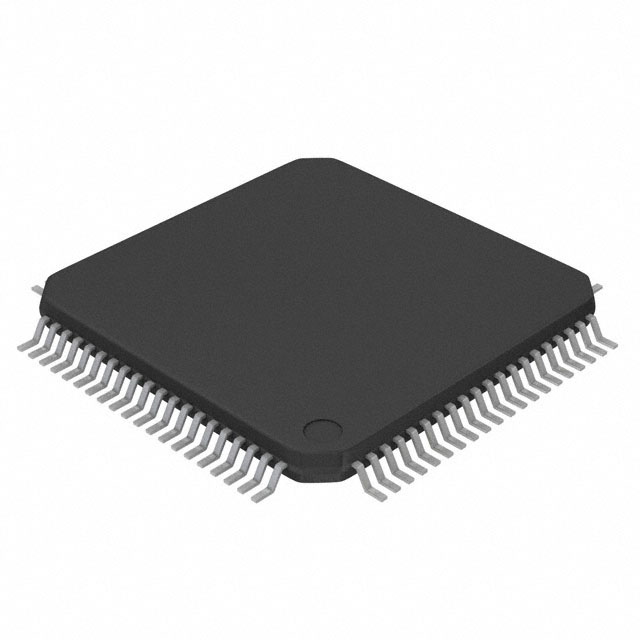

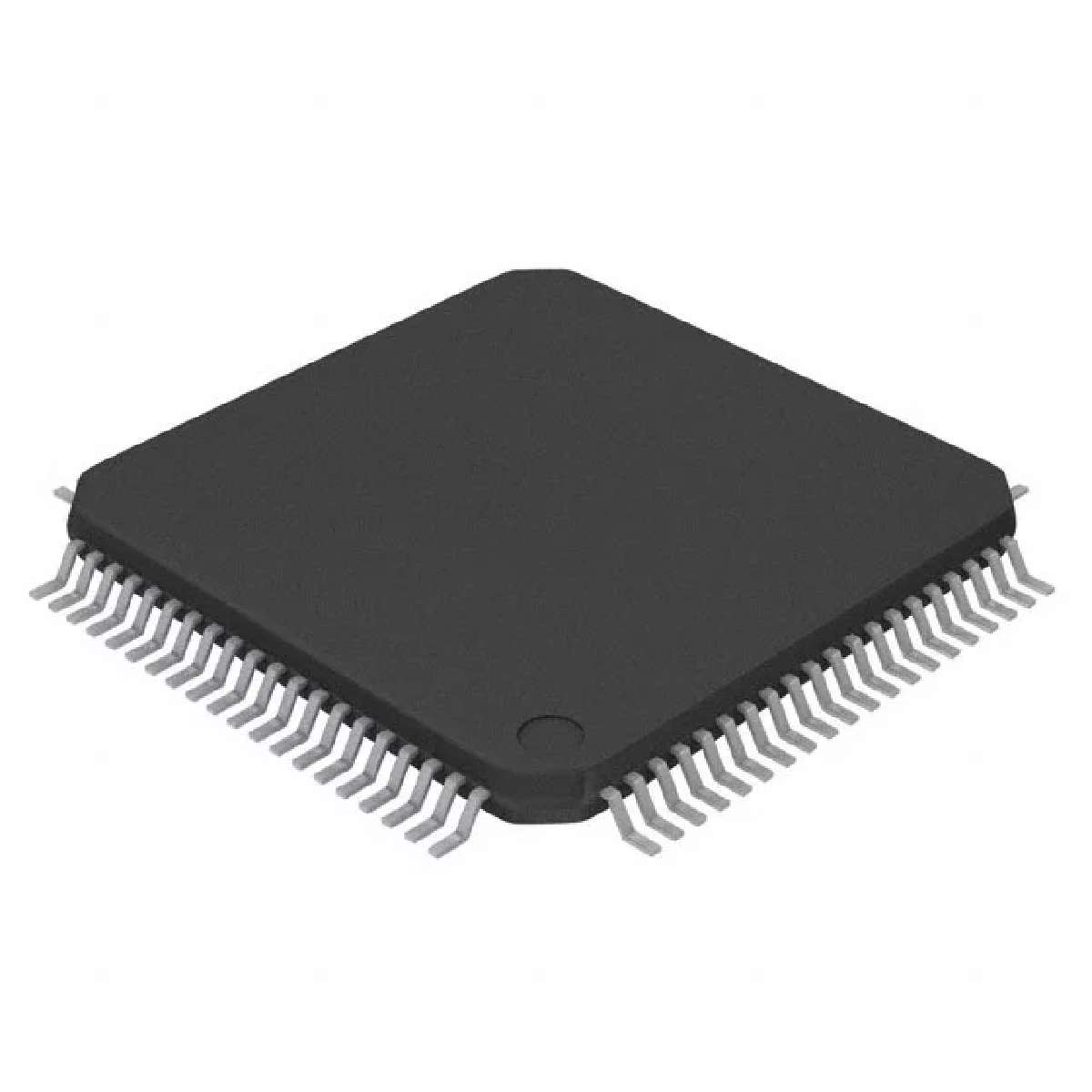

ANALOG DEVICES  AD9857ASTZ  芯片, 数字上变频器, 14位, 200MSPS, LQFP-80

The is a high speed Direct Digital Synthesizer DDS with a high performance, 14-bit digital-to-analog converter DAC, clock multiplier circuitry, digital filters and other DSP functions onto a single chip, to form a complete quadrature digital upconverter device. The AD9857 is intended to function as a universal I/Q modulator and agile upconverter, single-tone DDS or interpolating DAC for communications applications, where power dissipation and dynamic performance are critical attributes.

.

200MHz Internal clock rate

.

14-bit Data path

.

Excellent dynamic performance - 80dB SFDR at 65MHz ±100kHz AOUT

.

4x to 20x Programmable reference clock multiplier

.

Reference clock multiplier PLL lock detect indicator

.

Internal 32-bit quadrature DDS

.

FSK capability

.

8-bit Output amplitude control

.

Single-pin power-down function

.

Four programmable, pin-selectable signal profiles

.

SINx/x correction inverse SINC function

.

Simplified control interface

.

10MHz serial, 2-wire or 3-wire SPI®-compatible

.

Single-ended or differential input reference clock

.

Three modes of operation - Quadrature modulator mode, Single-tone mode, Interpolating DAC mode
