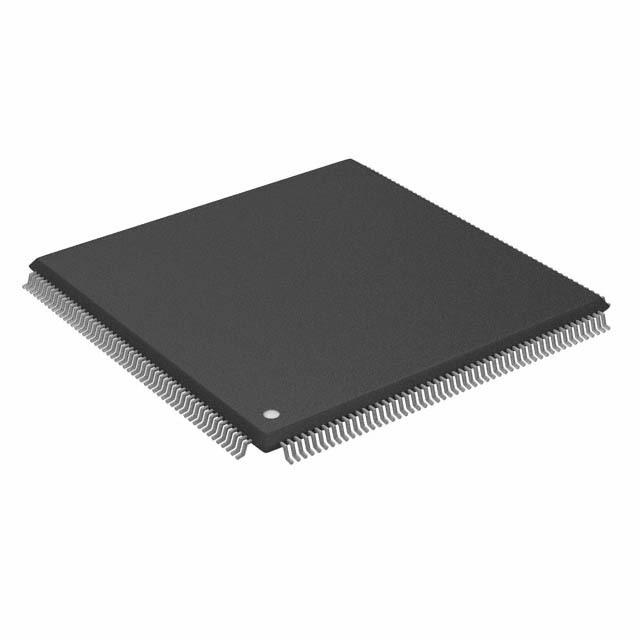

ADSP-21065LKSZ-264

ANALOG DEVICES  ADSP-21065LKSZ-264  芯片, 数字信号处理器, 浮动, 32/40BIT, 66MHZ, MQFP-208

The is a high performance DSP Microcomputer offers both fixed and floating-point capabilities, without compromising precision or performance. The SHARC-super Harvard architecture offers the highest levels of performance and memory integration of any 32-bit DSP in the industry. The ADSP-21065L is fabricated in a high speed, low power CMOS process, 0.35mm technology. With its on-chip instruction cache, the processor can execute every instruction in a single cycle. The ADSP-21065L is a powerful member of the SHARC family of 32-bit processor.

.

Super Harvard architecture computer SHARC

.

Four independent buses for dual data, instruction and I/O fetch on a single cycle

.

Flexible data formats and 40-bit extended precision

.

Parallel computations

.

32-bit Fixed-point arithmetic

.

32 and 40-bit Floating point arithmetic

.

544kB On-chip SRAM memory and integrated I/O peripheral

.

64M Words external address range

.

12 Programmable I/O pins and two timers with event capture options

ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
