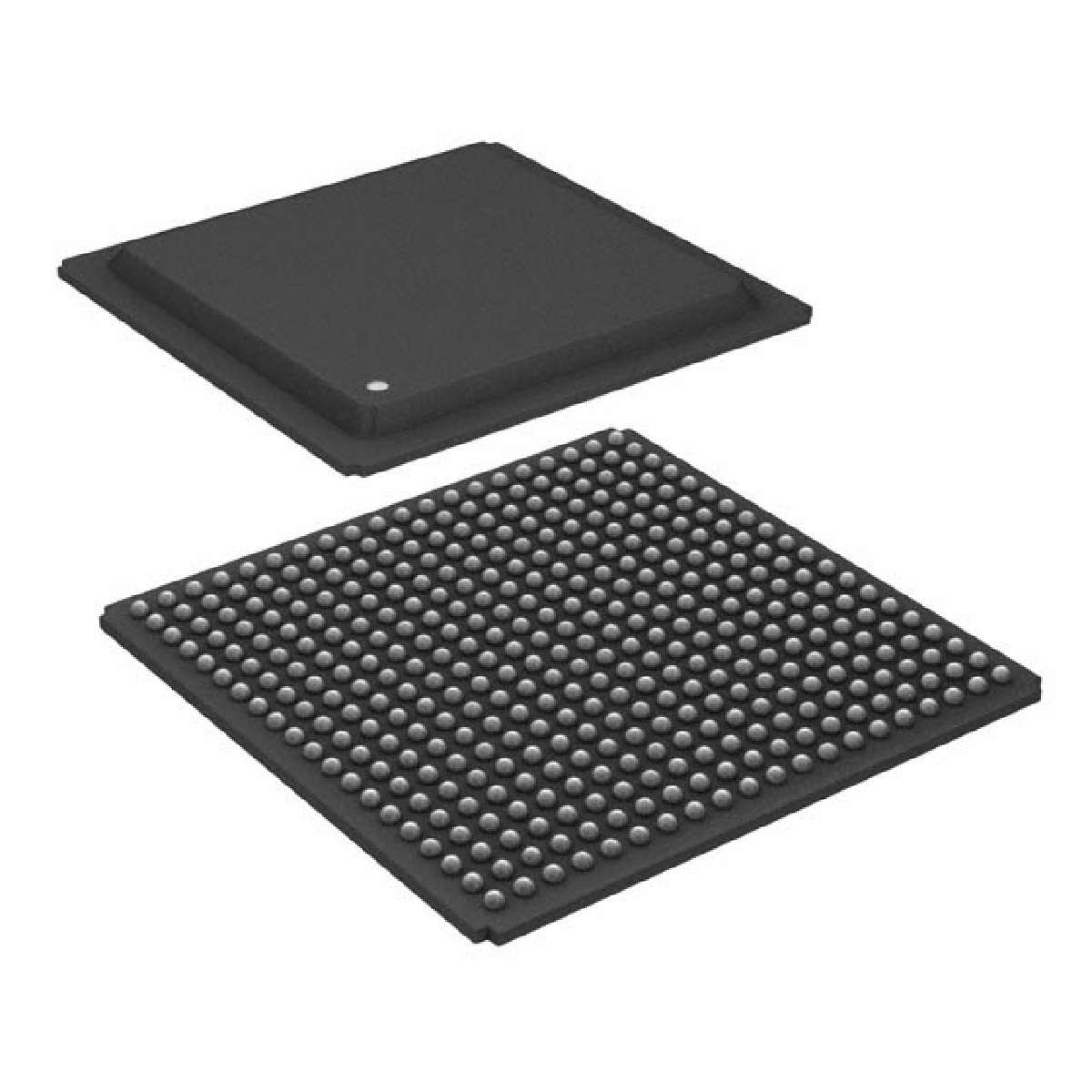

SHARC数字信号处理器 SHARC Digital Signal Processor
This digital signal processor from Analog Devices will convert your analog signals to digital. This DSP processor has a minimum operating temperature of -40 °C and a maximum of 100 °C. 100 MHz is its maximum speed. This device has a typical operating supply voltage of 1.9|3.3 V. Its minimum operating supply voltage of 1.8|3.13 V, while its maximum is 2|3.47 V. This is a 32 bit processor. It has romless program memory.
频率 100 MHz
时钟频率 100MHz max
RAM大小 512 KB
位数 32
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 400
封装 BGA-400
长度 27 mm
宽度 27 mm
高度 1.72 mm
封装 BGA-400
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADSP-21160NCB-100 ADI 亚德诺 | 当前型号 | 当前型号 |
ADSP-21160NKB-100 亚德诺 | 功能相似 | ADSP-21160NCB-100和ADSP-21160NKB-100的区别 |
