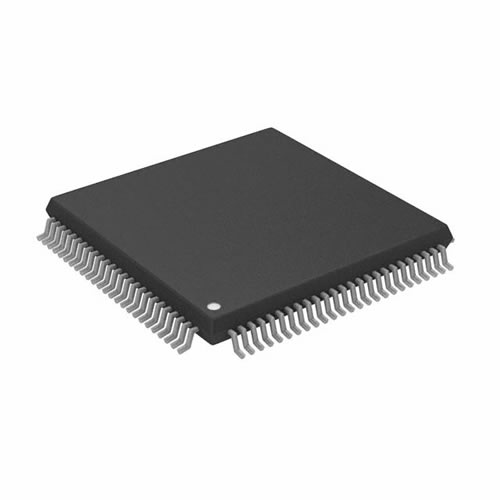

ANALOG DEVICES ADSP-2186NKSTZ-320 芯片, 数字信号处理器, 浮动, 16位, 80MHZ, LQFP-100
If you are a signal processing engineer then this digital signal processor from Analog Devices is going to be a must. This DSP processor has an operating temperature range of 0 °C to 70 °C. 80 MHz is its maximum speed. This is a 16 bit processor. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.71 V, while its maximum is 1.89|3.6 V. It has romless program memory.
频率 80 MHz
针脚数 100
时钟频率 80.0MHz max
RAM大小 40 KB
位数 16
I/O引脚数 13
工作温度Max 70 ℃
工作温度Min 0 ℃
安装方式 Surface Mount
引脚数 100
封装 LQFP-100
高度 1.45 mm
封装 LQFP-100
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADSP-2186NKSTZ-320 ADI 亚德诺 | 当前型号 | 当前型号 |
ADSP-2186NBSTZ-320 亚德诺 | 类似代替 | ADSP-2186NKSTZ-320和ADSP-2186NBSTZ-320的区别 |
ADSP-2186NBST-320 亚德诺 | 功能相似 | ADSP-2186NKSTZ-320和ADSP-2186NBST-320的区别 |
ADSP-2186NKST-320 亚德诺 | 功能相似 | ADSP-2186NKSTZ-320和ADSP-2186NKST-320的区别 |
