ADSP-BF533SBBC500

Blackfin㈢嵌入式处理器 Blackfin㈢ Embedded Processor

GENERAL DESCRIPTION

The ADSP-BF531/ADSP-BF532/ADSP-BF533 processors are members of the Blackfin family of products, incorporating the Analog Devices/Intel Micro Signal Architecture MSA. Black fin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC like microprocessor instruction set, and single instruction, multiple data SIMD multimedia capabilities into a single instruction set architecture.

FEATURES

Up to 600 MHz high performance Blackfin processor

  Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter

  RISC-like register and instruction model for ease of programming and compiler-friendly support

  Advanced debug, trace, and performance monitoring

0.85 V to 1.30 V core VDD with on-chip voltage regulation

1.8 V, 2.5 V, and 3.3 V compliant I/O

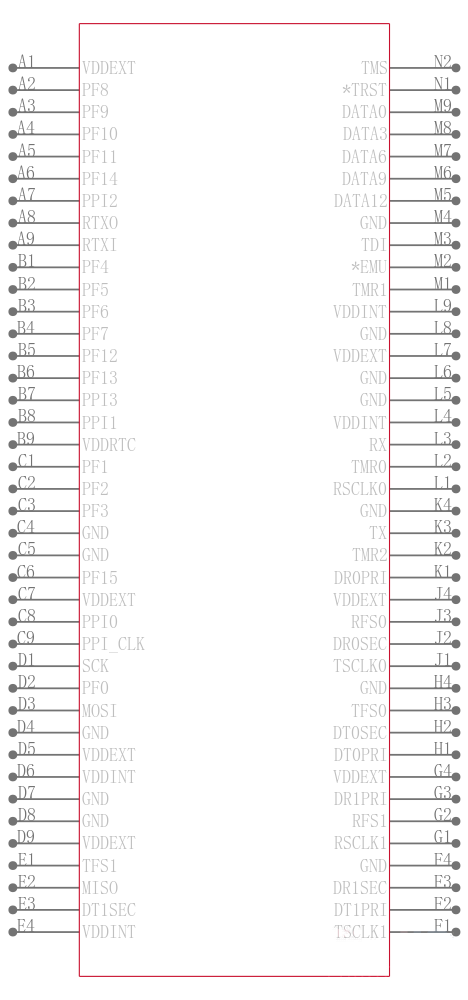

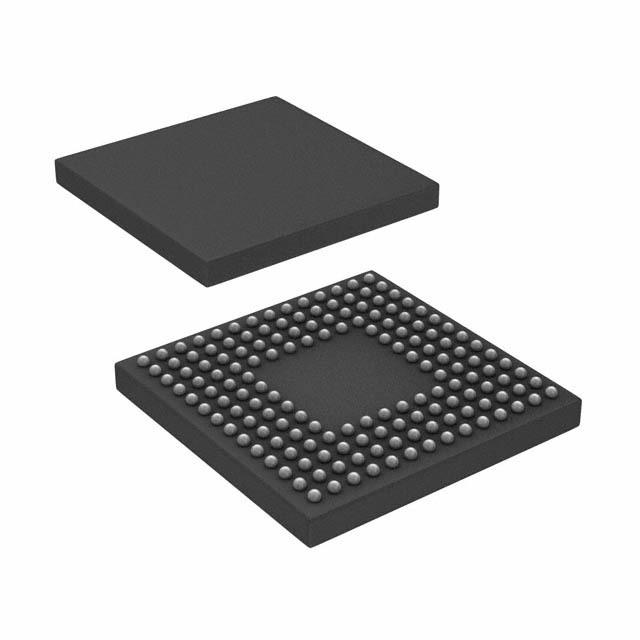

160-ball CSP_BGA, 169-ball PBGA, and 176-lead LQFP packages

MEMORY

Up to 148K bytes of on-chip memory:

   16K bytes of instruction SRAM/Cache

   Up to 64K bytes of instruction SRAM

   Up to32K bytes of data SRAM/Cache

   Up to32K bytes of data SRAM

   4K bytes of scratchpad SRAM

Memory management unit providing memory protection

External memory controller with glueless support for SDRAM, SRAM, flash, and ROM

Flexible memory booting options from SPI® and external memory

PERIPHERALS

Parallel peripheral interface PPI/GPIO, supporting ITU-R 656 video data formats

Two dual-channel, full duplex synchronous serial ports, supporting eight stereo I2S channels

Four memory-to-memory DMAs

Eight peripheral DMAs

SPI-compatible port

Three 32-bit timer/counters with PWM support

Real-time clock and watchdog timer

32-bit core timer

Up to 16 general-purpose I/O pins GPIO

UART with support for IrDA®

Event handler

Debug/JTAG interface

On-chip PLL capable of 0.5� to 64� frequency multiplication
