ADSP-BF547MBBCZ-5M

嵌入式处理器 Embedded Processor

GENERAL DESCRIPTION

The ADSP-BF54x Blackfin® processors are members of the Blackfin family of products, incorporating the Analog Devices/Intel Micro Signal Architecture MSA. Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data SIMD multimedia capabilities into a single instruction-set architecture.

FEATURES

  Up to 600 MHz high performance Blackfin processor

     Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs

     RISC-like register and instruction model

  Wide range of operating voltages and flexible booting options

  Programmable on-chip voltage regulator

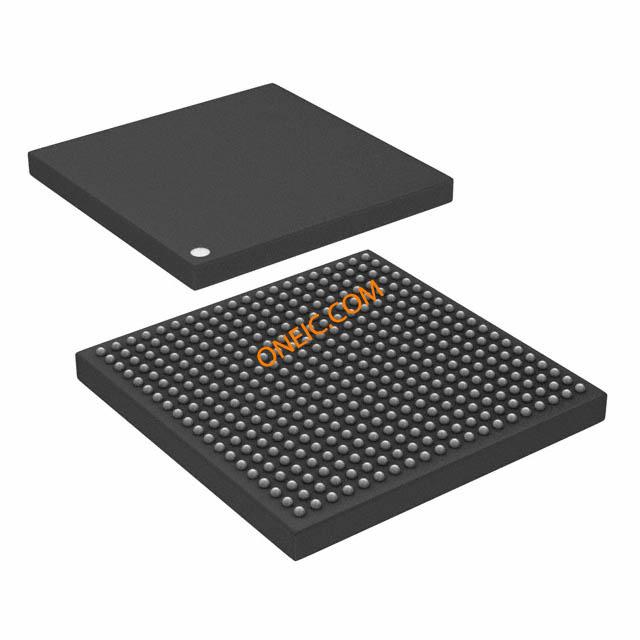

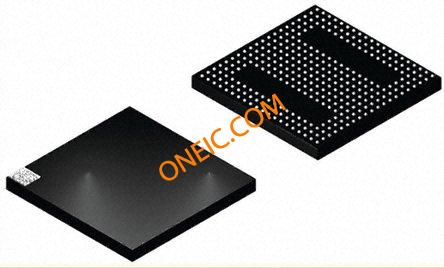

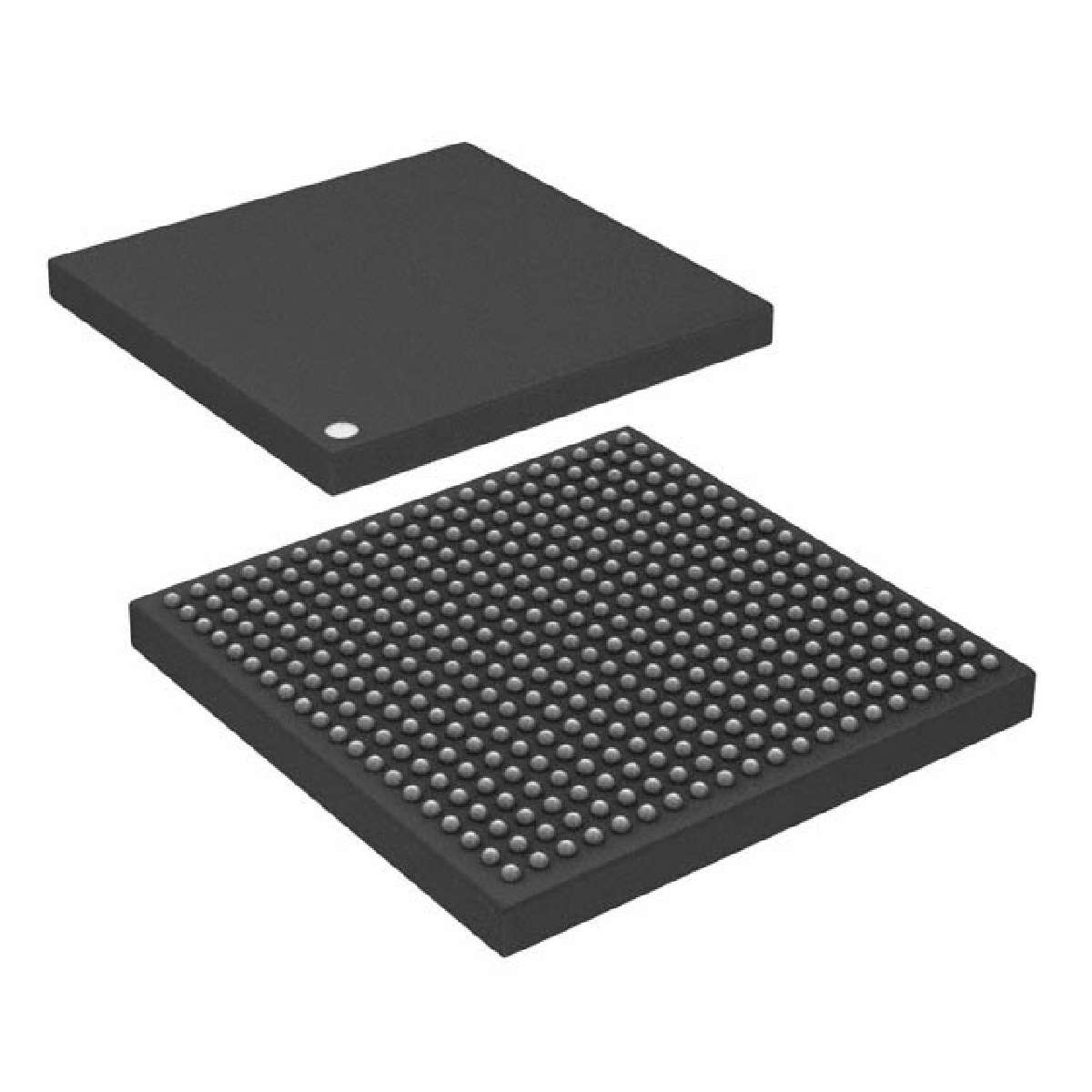

  400-ball CSP_BGA, RoHS compliant package

MEMORY

  Up to 324K bytes of on-chip memory comprised of

     instruction SRAM/cache; dedicated instruction SRAM; data

     SRAM/cache; dedicated data SRAM; scratchpad SRAM

  External sync memory controller supporting either DDR SDRAM or mobile DDR SDRAM

  External async memory controller supporting 8-/16-bit async memories and burst flash devices

  NAND flash controller

  4 memory-to-memory DMA pairs, 2 with ext. requests

  Memory management unit providing memory protection

  Code security with Lockbox secure technology and 128-bit AES/ARC4 data encryption

  One-time-programmable OTP memory

PERIPHERALS

  High speed USB On-the-Go OTG with integrated PHY

  SD/SDIO controller

  ATA/ATAPI-6 controller

  Up to 4 synchronous serial ports SPORTs

  Up to 3 serial peripheral interfaces SPI-compatible

  Up to 4 UARTs, two with automatic H/W flow control

  Up to 2 CAN controller area network 2.0B interfaces

  Up to 2 TWI 2-wire interface controllers

  8- or 16-bit asynchronous host DMA interface

  Multiple enhanced parallel peripheral interfaces EPPIs, supporting ITU-R BT.656 video formats and 18-/24-bit LCD connections

  Media transceiver MXVR for connection to a MOST network

  Pixel compositor for overlays, alpha blending, and color conversion

  Up to eleven 32-bit timers/counters with PWM support

  Real-time clock RTC and watchdog timer

  Up/down counter with support for rotary encoder

  Up to 152 general-purpose I/O GPIOs

  On-chip PLL capable of 0.5× to 64× frequency multiplication

  Debug/JTAG interface
