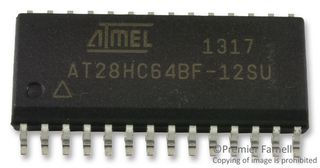

ATMEL AT28HC64BF-12SU EEPROM, 64 Kbit, 8K x 8位, 并行, WSOIC, 32 引脚
The is a 64k high-performance Electrically Erasable and Programmable Read-Only Memory EEPROM organized as 8192 words by 8-bit. Manufactured with Atmels advanced nonvolatile CMOS technology, the device offers access times to 120ns with power dissipation of just 220mW. When the device is deselected, the CMOS standby current is less than 100µA. The AT28HC64BF is accessed like a static RAM for the read or write cycle without the need for external components. The device contains a 64-byte page register to allow writing of up to 64-byte simultaneously. During a write cycle, the addresses and 1 to 64-byte of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer. The end of a write cycle can be detected by DATA polling of I/O7. Once the end of a write cycle has been detected, a new access for a read or write can begin.
电源电压DC 4.50V min
供电电流 40 mA
针脚数 32
存取时间 70 ns
内存容量 8000 B
存取时间Max 120 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 32
封装 SOIC-28
长度 18.1 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AT28HC64BF-12SU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
CAT28C64BWI12 安森美 | 类似代替 | AT28HC64BF-12SU和CAT28C64BWI12的区别 |
CAT28C64BWI-12T 安森美 | 功能相似 | AT28HC64BF-12SU和CAT28C64BWI-12T的区别 |
