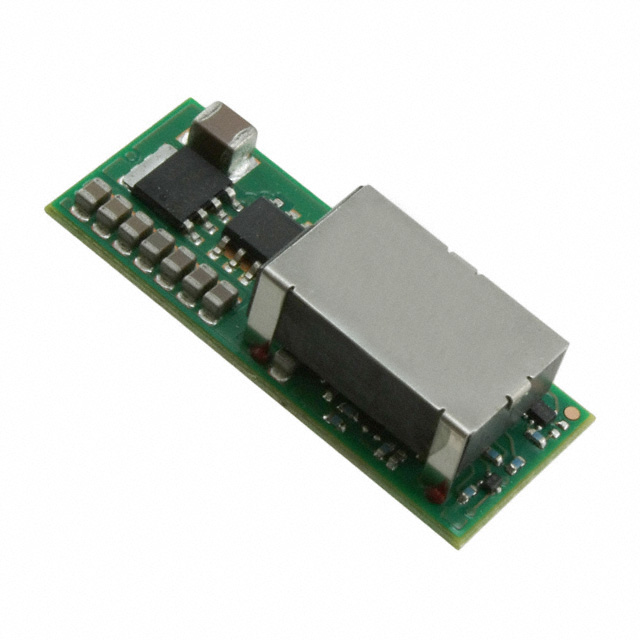

Module DC-DC 1Out 0.69V to 5.5V 20A 10Pin SMT T/R
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 0.69 to 5.5 V. This part has a temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
艾睿:
Module DC-DC 1-OUT 0.69V to 5.5V 20A 10-Pin SMT T/R
安富利:
Module DC-DC 1-OUT 0.69V to 5.5V 20A 10-Pin SMT T/R
Verical:
Module DC-DC 1-OUT 0.69V to 5.5V 20A 10-Pin SMT T/R
额定功率 110 W
输出接口数 1
输入电压DC 4.50V ~ 14.0V
输出电压 0.69V ~ 5.5V
输出电流 20 A
输入电压Max 14 V
输入电压Min 4.5 V
输入电压DC Max 14 V
输入电压DC Min 4.5 v
输出电压Max 5.5 V
输出电压Min 690 mV
输出电流Max 20 A
输出功率Max 110 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 14V
安装方式 Surface Mount
引脚数 10
封装 SMD-10
宽度 13.46 mm
高度 8.5 mm
封装 SMD-10
工作温度 -40℃ ~ 85℃
包装方式 Tape & Reel TR
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
