可调输出,3A,降压稳压器
Adjust the voltage level of your devices with this step down DC to DC converter from Alpha & Omega Semiconductor. This converter"s single output can produce a current up to 3 A. By only needing an input voltage of 4.5 V with a maximum of 27 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 27 V, this is power management at its best. At a load regulation of 0.5%Typ and line regulation of 0.08%/VTyp your circuit is capable of maintaining a constant voltage level at your output. You can operate this at a switching frequency of 425 kHz. This converter has an operating temperature range of -40 °C to 85 °C.
频率 0.37 MHz
输出接口数 1
输出电压 0.8V ~ 27V
输出电流 3 A
开关频率 370 kHz
输入电压Max 27 V
输入电压Min 4.5 V
输出电压Max 22.95 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5.27 V
安装方式 Surface Mount
引脚数 8

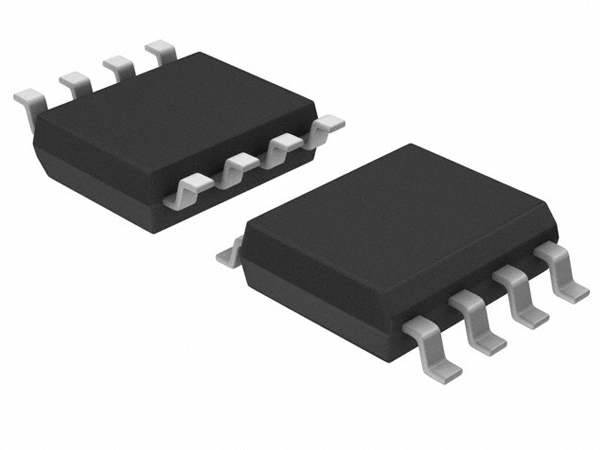

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AOZ1212AI Alpha & Omega Semiconductor 万代半导体 | 当前型号 | 当前型号 |
AOZ1212DI 万代半导体 | 类似代替 | AOZ1212AI和AOZ1212DI的区别 |
