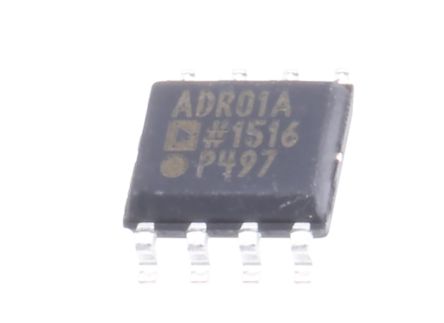

ANALOG DEVICES ADR01ARZ.. 单管二极管 齐纳, SOIC, 8 引脚
参考电压,10V,Analog Devices
### 电压参考,Analog Devices
精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
得捷:
IC VREF SERIES 0.1% 8SOIC
立创商城:
串联 10mA
欧时:
Analog Devices ADR01ARZ Fixed 10V 电压参考, 9.99 → 10.01 V输出, ±0.1 %精确度, 10mA最大输出, 8引脚
艾睿:
V-Ref Precision 10V 10mA 8-Pin SOIC N Tube
安富利:
The ADR01 is precision 10.0 V band gap voltage references featuring high accuracy, high stability, and low power consumption. The parts are housed in tiny, 5-lead SC70 and TSOT packages, as well as in 8-lead SOIC versions. The SOIC versions of the ADR01 is drop-in replacements1 to the industrystandard REF01. The small footprint and wide operating range make the ADR0x references ideally suited for general-purpose and space-constrained applications.With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is provided on the devices for fine adjustment of the output voltage.
Chip1Stop:
V-Ref Precision 10V 10mA 8-Pin SOIC N Tube
TME:
Voltage reference source; 10V; ±0.1%; SO8; -40÷125°C; 10mA
Verical:
V-Ref Precision 10V 10mA 8-Pin SOIC N Tube
Newark:
# ANALOG DEVICES ADR01ARZ Voltage Reference, Precision, Series - Fixed, ADR01 Series, 10V, NSOIC-8
DeviceMart:
IC VREF SERIES PREC 10V 8-SOIC
额定电流 1.00 mA
容差 ±0.1 %
输入电压DC 12.0V ~ 36.0V
输出电压 10 V
输出电流 10 mA
供电电流 1 mA
通道数 1
针脚数 8
输入电压Max 36 V
输出电压Max 10.01 V
输出电压Min 10 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.1 %
输入电压 12V ~ 36V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TA
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADR01ARZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADR01BRZ 亚德诺 | 完全替代 | ADR01ARZ和ADR01BRZ的区别 |
ADR01ARZ-REEL7 亚德诺 | 类似代替 | ADR01ARZ和ADR01ARZ-REEL7的区别 |
ADR01BRZ-REEL7 亚德诺 | 类似代替 | ADR01ARZ和ADR01BRZ-REEL7的区别 |
