ANALOG DEVICES AD7660ASTZ 模数转换器, 16 bit, 100 kSPS, 单, 4.75 V, 5.25 V, LQFP
The is a 16-bit PulSAR® Uni-polar CMOS charge redistribution SAR Analog-to-digital Converter ADC that operates from a single 5V power supply. The part contains an internal conversion clock, error correction circuits and both serial and parallel system interface ports. It is hardware factory-calibrated and is comprehensively tested to ensure AC parameters such as signal-to-noise ratio and total harmonic distortion, in addition to the more traditional dc parameters of gain, offset and linearity.
- .
- No pipeline delay
- .
- Parallel and serial 5/3V Interface SPI®/QSPI™/MICROWIRE™/DSP compatible
- .
- Pin-to-pin compatible with the AD7664
数字逻辑电平 SAR
电源电压DC 4.75V min
工作电压 5 V
供电电流 3.20 mA
电路数 1
通道数 1

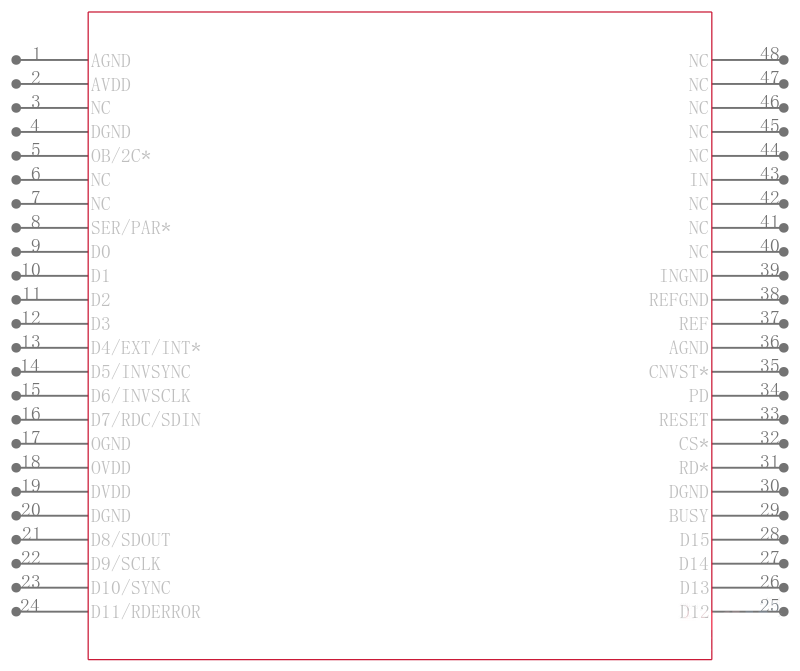

针脚数 48
位数 16
耗散功率 21 mW
采样率 100 ksps
功耗 21 mW
分辨率Bits 16.0
输入电容 60.0 pF
输入阻抗 1.00 MΩ
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 25 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
输入电压 2.5 V
安装方式 Surface Mount
引脚数 48

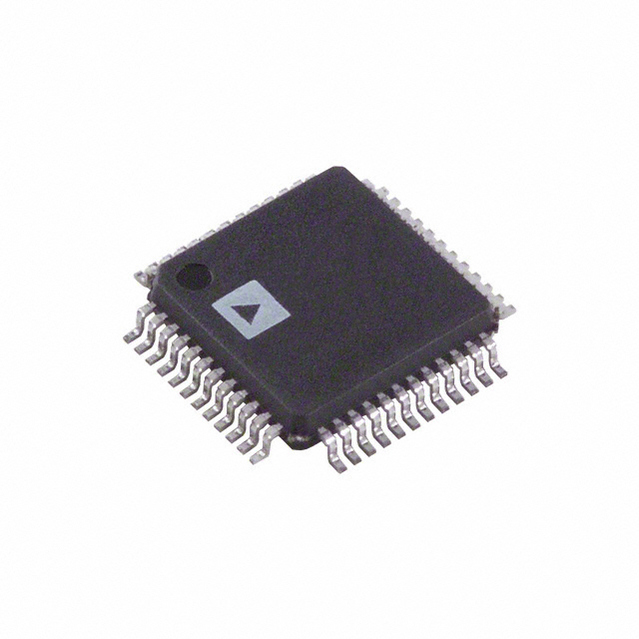

封装 LQFP-48
高度 1.4 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Automation & Process Control, Communications & Networking, Sensing & Instrumentation, , Automation & Process Control, 通信与网络, Communications & Networking, Test & Measurement, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
