AD976ARZRL

16位100 kSPS时/ 200 kSPS时的BiCMOS A / D转换器 16-Bit, 100 kSPS/200 kSPS BiCMOS A/D Converters

Product Details

The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a throughput rate of 200 ksps whereas the AD976 has a throughput rate of 100 ksps. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high-speed parallel interface. The AD976 and AD976A dissipate a maximum of 100 mW. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 V.

The AD976 and AD976A are comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.

The AD976 and AD976A are fabricated on Analog Devices" proprietary BiCMOS process, which has high performance bipolar devices along with CMOS transistors.

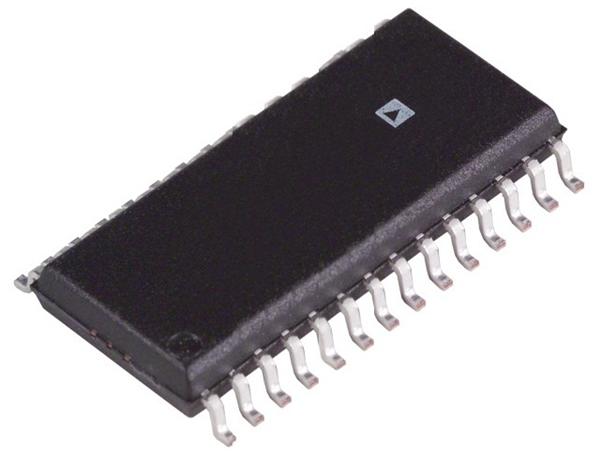

The AD976 and AD976A are available in skinny 28-pin DIP, SSOP and SOIC packages.

### Features and Benefits

.

Fast 16-Bit ADC

.

100 kSPS Throughput

.

Single 5 V Supply Operation

.

Input Range: ±10 V

.

100 mW Max Power Dissipation

.

Choice of External or Internal 2.5 V Reference

.

High Speed Parallel Interface

.

On-Chip Clock

.

28-Lead Skinny DIP, SSOP or SOIC Packages
