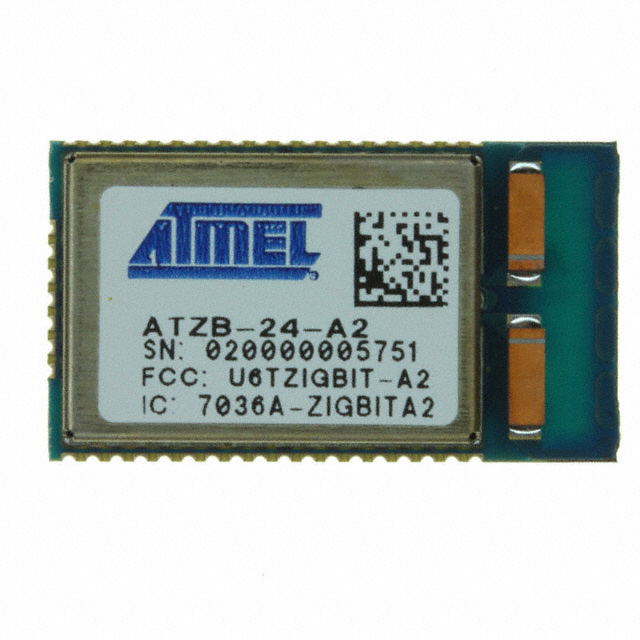

ATMEL ATZB-24-A2R 无线模块, ZIGBIT, 2.4GHz, 带双片上天线
The ATZB-24-A2 ZigBit™ is an ultra-compact, low-power, high-sensitivity 2.4 GHz IEEE 802.15.4/ZigBee® OEM module based on the innovative Atmel"s mixed-signal hardware platform. It is designed for wireless sensing, control and data acquisition applications. ZigBit modules eliminate the need for costly and time-consuming RF development, and shortens time to market for a wide range of wireless applications. Two different versions of 2.4 GHz ZigBit modules are available: ATZB-24-B0 module with balanced RF port for applications where the benefits of PCB or external antenna can be utilised and ATZB-24-A2 module with dual chip antenna satisfying the needs of applications requiring integrated, small-footprint antenna design. ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self organizing mesh network, while optimizing network traffic and minimizing power consumption. Atmel offers two stack configurations: BitCloud and SerialNet.
Ensure that the OEM modular transmitter must be labelled with its own FCC ID number.
频率 2.4 GHz
电源电压DC 1.80V min
通道数 16
RAM大小 8 KB
数据速率 250 kbps
FLASH内存容量 128 KB
输出功率 3 dBm
工作温度Max 70 ℃
工作温度Min -20 ℃
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 43
封装 PCB Module
高度 2.8 mm
封装 PCB Module
工作温度 -20℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 Alternative Energy, Industrial, Building Automation, 工业, 安全, 无线, 替代能源, Wireless, Maintenance & Repair, 建筑自动化, Security, 维护与修理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
