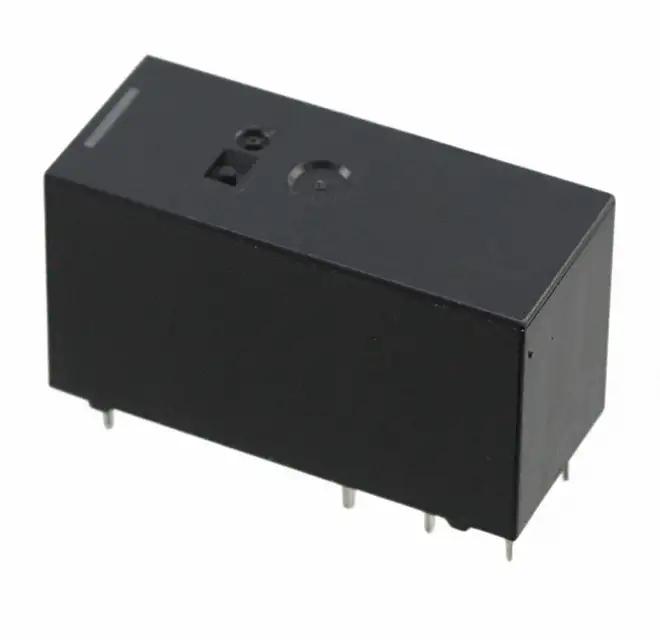

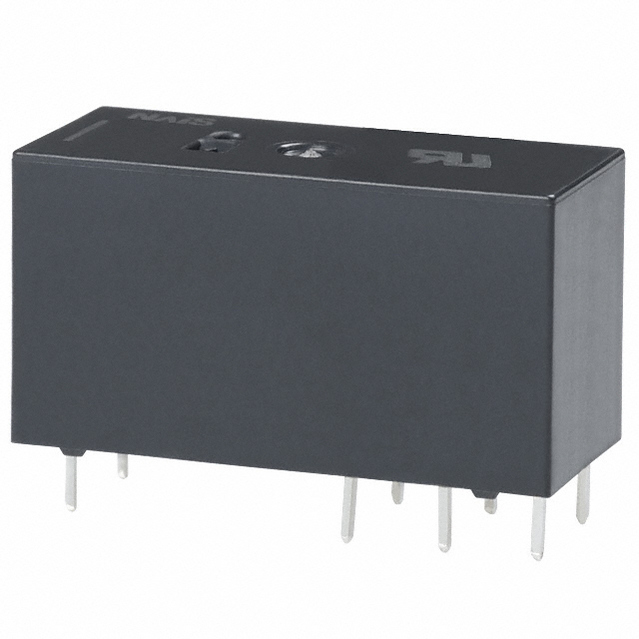

ALZ12B12W

低姿态： 15.7毫米高度1A / 1C 16A功率继电器家电 Low profile: 15.7mm height 1a/1c 16A power relay Household electrical appliances

FEATURES

1\. Low profile type with height of 15.7 mm

   Slim, low profile type with dimensions of 28.8 L × 12.5 W × 15.7 H mm 1.134 L × .492 W × .618 H inch.

2\. High insulation resistance

   Superior insulation characteristics have been achieved by maintaining an insulation distance between coil and contacts of at least 10 mm for both creepage distance and clearances.

   Furthermore, anti-surge voltage is 10 kV and higher. Supports European reinforced insulation requirement.

3\. Superior heat resistance

   Can be used in ambient temperatures up to 85°C 185°F for the class B and 105°C 221°F for the class F.

4\. Low operating power

   Power saved with a nominal operating power of only 400 mW.

5\. Conforms to the various safety standards:

   UL/C-UL, VDE approved.

6\. Superior heat resistance and tracking resistance

   EN60335-1 GWT compliant Tested by VDE type available

TYPICAL APPLICATIONS

1 Household electrical appliances

   TV, CATV, Audio equipment, Microwave ovens, and Heaters, etc.

2 Office equipment

   Copy machines, Packaged air conditioners, and Vending machines

3 Industrial equipment

   Machine tools, Robots, and Temperature controllers
