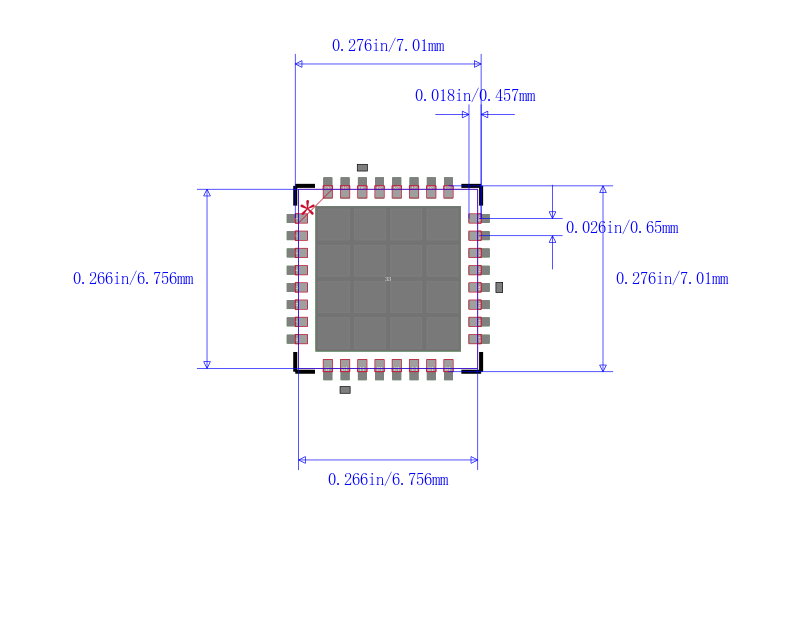

AMIS 系列 30 V 表面贴装 微型步进电机驱动器 NQFP-32
The AMIS-30532 is a micro-stepping stepper motor driver for bipolar stepper motors. The chip is connected through I/O pins and an SPI interface with an external microcontroller. It has an on-chip voltage regulator, reset-output and watchdog reset, able to supply peripheral devices. The AMIS-30532 contains a current-translation table and takes the next micro-step depending on the clock signal on the NXT input pin and the status of the DIR =direction register or input pin. The chip provides a so-called speed and load angle output. This allows the creation of stall detection algorithms and control loops based on load-angle to adjust torque and speed. It is using a proprietary PWM algorithm for reliable current control. The AMIS-30532 is implemented in I2T100 technology, enabling both high-voltage analog circuitry and digital functionality on the same chip. The chip is fully compatible with the automotive voltage requirements. The AMIS-30532 is ideally suited for general-purpose stepper motor applications in the automotive, industrial, medical, and marine environment. With the on-chip voltage regulator it further reduces the BOM for mechatronic stepper applications.
Features
---
|
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AMIS30532C5321RG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
AMIS30532C5321G 安森美 | 完全替代 | AMIS30532C5321RG和AMIS30532C5321G的区别 |
