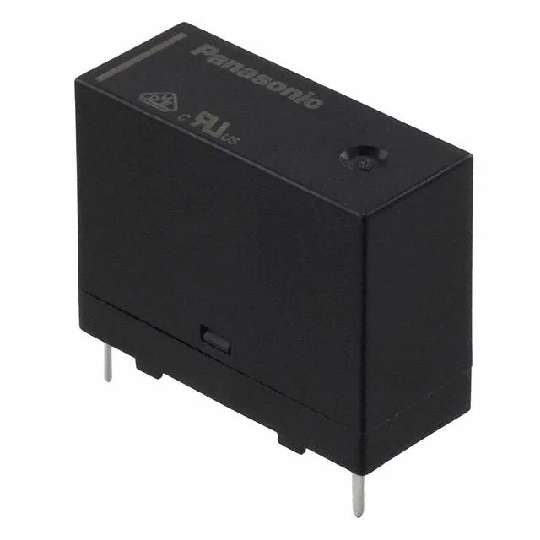

PANASONIC ELECTRIC WORKS ADW1224HT Power Relay, SPST-NO, 24VDC, 16A, DWADW1 Series, Through Hole, Latching Dual Coil
Power Relay 24VDC 16A SPST-NO24x10x18.8mm THT
得捷:
RELAY GEN PURPOSE SPST 16A 24V
艾睿:
Power Relay 24VDC 16A SPST-NO24x10x18.8mm THT
安富利:
Electromechanical Relay SPST-NO 16A 24V 1440Ohm Through Hole
Verical:
ADW1224HT
Newark:
# PANASONIC ELECTRIC WORKS ADW1224HT Power Relay, SPST-NO, 24 VDC, 16 A, DWADW1 Series, Through Hole, Latching Dual Coil
Online Components:
Power Relay 24VDC 16A SPST-NO24x10x18.8mm THT
Electro Sonic:
Power Relay 24VDC 16A SPST-NO24x10x18.8mm THT
触点类型 SPST-NO
功耗 400 mW
触点额定电流 16 A
线圈电压 24 VDC
线圈电流 16.7 mA
线圈电阻 1.44 KΩ
线圈电压DC 24 V
额定功率Max 4.432 kVA
开关电流Max 16 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压AC Max 277 V
安装方式 Through Hole
引脚数 5
长度 24 mm
宽度 10 mm
高度 18.8 mm
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
