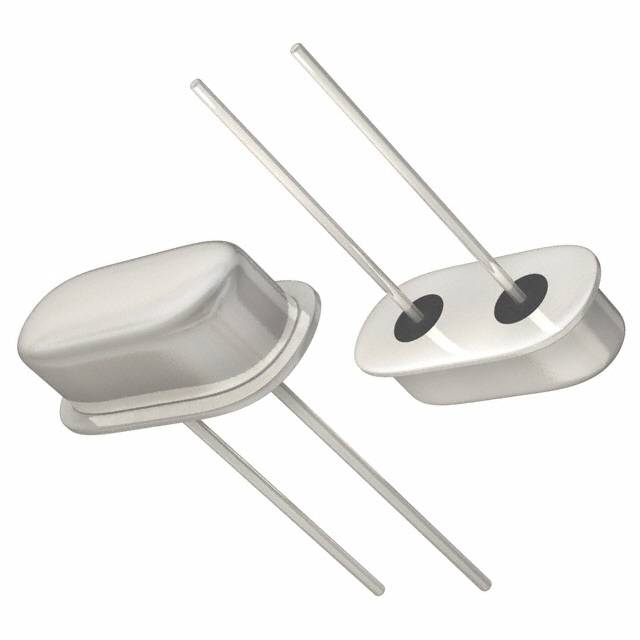

ABRACON ABL-20.000MHZ-B2 晶振, 20MHZ, 18pF CL, HC49/4H
20 MHz ±20ppm 晶体 18pF HC-49/US
欧时:
HC/49US Microprocessor Crystal 20Mhz
得捷:
CRYSTAL 20.0000MHZ 18PF TH
立创商城:
20MHz ±20ppm 18pF
e络盟:
晶体, 20 MHz, 通孔, 11.5mm x 5mm, 50 ppm, 18 pF, 20 ppm, ABL系列
艾睿:
Crystal 20MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US Thru-Hole Bulk
安富利:
CRYSTAL, uP, TH/2-Pin, HC/49US AT49, 20.000MHz Bulk
Chip1Stop:
Crystal 20MHz ﾂｱ20ppm Tol ﾂｱ50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US Thru-Hole Bulk
Verical:
Crystal 20MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US Thru-Hole Bulk
Newark:
# ABRACON ABL-20.000MHZ-B2 Crystal, High Reliability, 20 MHz, Through Hole, 11.5mm x 5mm, 50 ppm, 18 pF, 20 ppm, ABL Series
频率 20 MHz
频率稳定度 ±50 ppm
频率容差 ±20 ppm
绝缘电阻 500 MΩ
等效串联电阻ESR 40 Ω
负载电容 18 pF
工作温度Max 70 ℃
工作温度Min -20 ℃
安装方式 Through Hole
引脚数 2
封装 HC-49
长度 11.5 mm
宽度 5 mm
高度 3.5 mm
封装 HC-49
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 车用, 通信与网络, 工业, Clock & Timing, Computers & Computer Peripherals, Consumer Electronics, Automotive, 时钟与计时, 消费电子产品, Communications & Networking, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 Contains SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ABL-20.000MHZ-B2 Abracon | 当前型号 | 当前型号 |
ABL-20.000MHZ-B1U-T Abracon | 类似代替 | ABL-20.000MHZ-B2和ABL-20.000MHZ-B1U-T的区别 |
MCRS020000F183000RR Multicomp | 功能相似 | ABL-20.000MHZ-B2和MCRS020000F183000RR的区别 |
