ADM8611N263ACBZ-R7

ANALOG DEVICES  ADM8611N263ACBZ-R7  芯片, 电压监控器, 5.5V, WLCSP-6

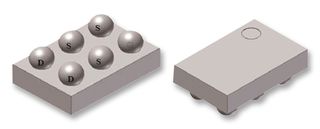

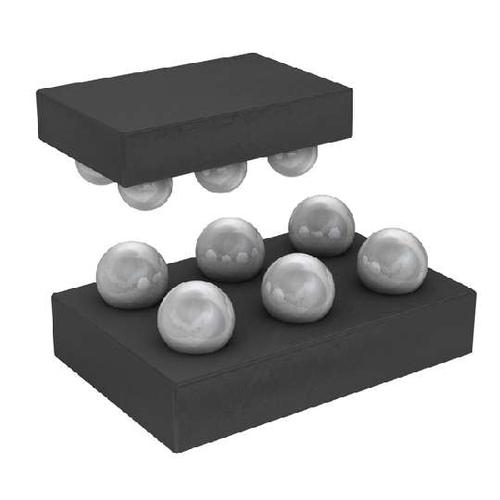

The is an ultra low power supervisory IC with watchdog timer and manual reset in 6 pin WLCSP package. This is a voltage supervisory circuit that monitors power supply voltage levels and code execution integrity in microprocessor-based systems. Apart from providing power-on reset signals, an on chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push-button through a manual reset input. The ultralow power consumption of this device makes it suitable for power efficiency sensitive systems, such as battery powered portable devices and energy meters. In the range of 2V to 4.63V, 10 options are available for the ADM8611.

.

Operating temperature range from 0.9V to 5.5V

.

Quiescent current is 190nA

.

Threshold accuracy is ±1.3% over full temperature range

.

Manual reset

.

Reset timeout is 200ms typical

.

Active low, open drain RESET output

.

Power supply glitch immunity

.

Operating temperature range from -40°C to +85°C

ESD sensitive device, take proper precaution while handling the device.
