A13AV1

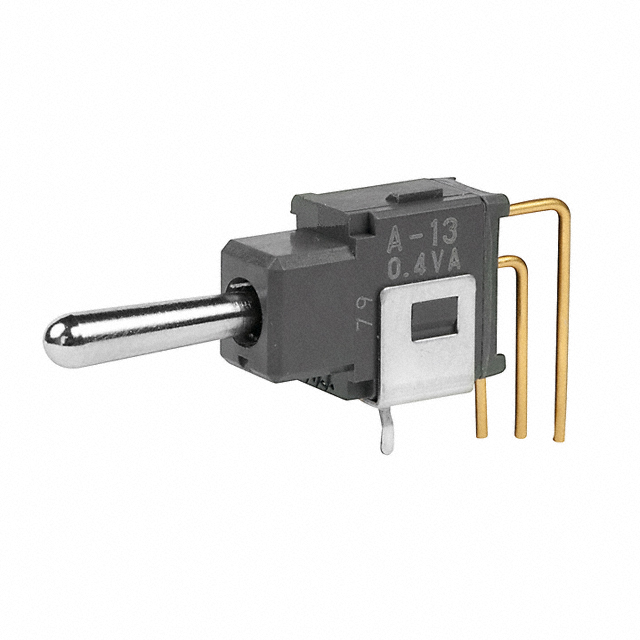

NKK SWITCHES  A13AV1  拨动开关, SPDT, 0.1A, 28VAC

A Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The A Series toggles have not been tested for UL recognition or CSA certification.

得捷:
SWITCH TOGGLE SPDT 0.4VA 28V

e络盟:
拨动开关, SPDT, 0.1A, 28VAC

艾睿:
With this process sealed A13AV1 toggle switch from NKK Switches you can toggle on or off various components of your application. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A13AV1 toggle switch has a PC pin termination style. This product is 5.84 mm long, 10.2 mm tall and 29.26 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
SWITCH TOGGLE SPDT 0.4VA 28V

Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Verical:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Newark:
# NKK SWITCHES  A13AV1  Toggle Switch, Non Illuminated, SPDT, On-Off-On, Panel, 100 mA

Powell:
SUBMINIATURE TOGGLE/PC
