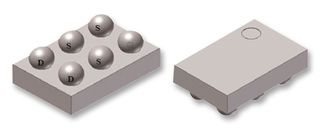

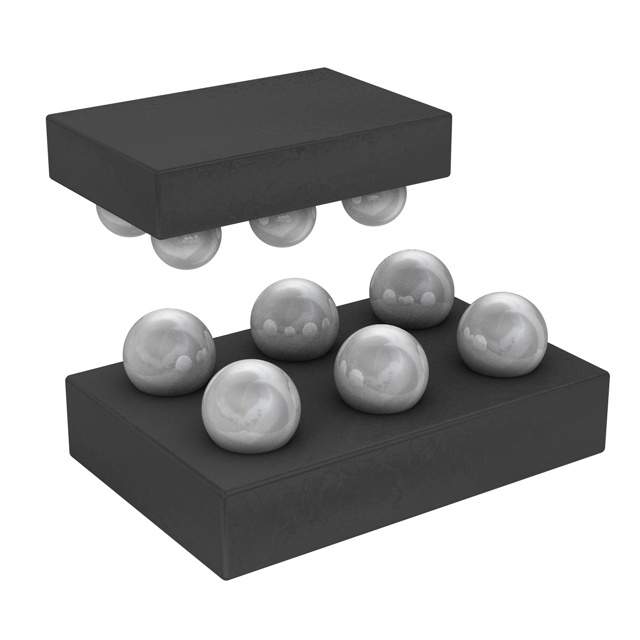

ANALOG DEVICES ADM8642T100ACBZ-R7 芯片, 电压探测器, 5.5V, WLCSP-6
Have an extra layer of protection from under and overvoltage conditions in a circuit, keeping all your components safe with this voltage detector voltage monitor IC from Analog Devices. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 1 V, with a minimum of 0.984 V and a maximum of 1.016 V. This voltage supervisor IC has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 2 V and a maximum of 5.5 V.
电源电压DC 2.00V min
针脚数 6
阈值电压 1.9 V
复位电压Min 0.984 V
复位电压Max 1.016 V
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 1.3 %
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 6

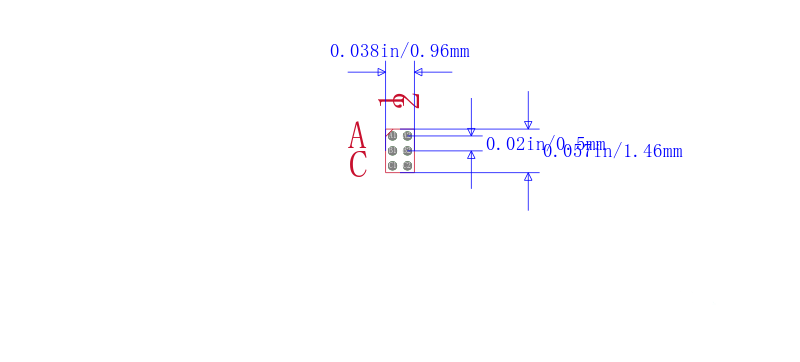

封装 WLCSP-6
封装 WLCSP-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
