ADV7280BCPZ-M-RL

视频 IC 10-bit SD Video Decoder

Product Details

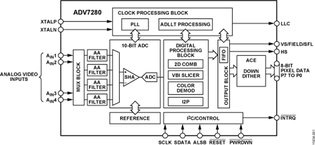

The ADV7280/ADV7280-M are versatile one-chip, multiformat video decoders. The ADV7280/ADV7280-M automatically detect standard analog baseband video signals compatible with worldwide NTSC, PAL, and SECAM standards in the form of composite, S-Video, and component video.

The ADV7280 converts the analog video signals into a 4:2:2 component video data stream that is compatible with the 8-bit ITU-R BT.656 interface standard. The ADV7280-M converts the analog video signals into a mobile industry processor interface MIPI® CSI-2 8-bit YUV output video stream.

The analog video inputs of the ADV7280/ADV7280-M accept single-ended signals. The ADV7280 provides four analog inputs; the ADV7280-M provides eight analog inputs. The ADV7280 and ADV7280-M support I2P conversion.

The ADV7280/ADV7280-M are programmed via a 2-wire, serial bidirectional port I2C compatible and are fabricated in a 1.8 V CMOS process. The LFCSP package option makes these decoders ideal for space-constrained portable applications.

**Applications**

.

Smartphone/multimedia handsets

.

Automotive infotainment

.

DVRs for video security

.

Media players

### Features and Benefits

.

Worldwide NTSC/PAL/SECAM color demodulation support

.

One 10-bit analog-to-digital converter ADC, 4× oversampling per channel for CVBS, Y/C, and YPrPb modes

.

Analog video input channels with on-chip antialiasing filter

ADV7280: up to 4 input channels

ADV7280-M: up to 8 input channels

.

Video input support for CVBS composite, Y/C S-Video, and YPrPb component

.

NTSC/PAL/SECAM autodetection

.

Up to 1.47 V common-mode input range solution

.

Excellent common-mode noise rejection capabilities

.

5-line adaptive 2D comb filter and CTI/DNR video enhancement

.

Adaptive Digital Line Length Tracking ADLLT, signal processing, and enhanced FIFO management provide mini-time base correction TBC functionality

.

See data sheet for additional features
