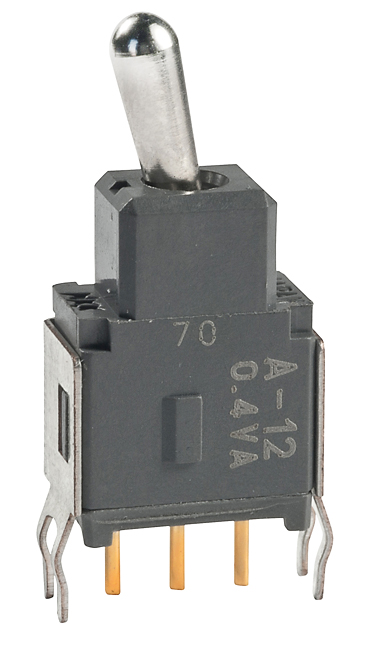

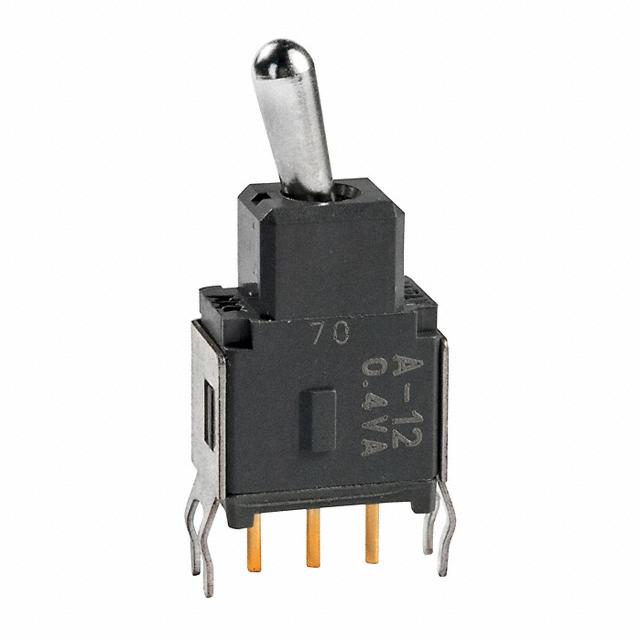

Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
The process sealed toggle switch from Switches comes with minimal lag when toggling a component of your circuit. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A12JB toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 10.46 mm long, 19.4 mm tall and 5.84 mm deep.
额定电压DC 28 V
额定电压AC 28 V
额定电流 100 mA
排数 1
额定功率 0.4 VA
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 10.46 mm
宽度 5.84 mm
高度 19.4 mm
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A12JB NKK 日本长野 | 当前型号 | 当前型号 |
ET01MD1V3BE C&K Components | 功能相似 | A12JB和ET01MD1V3BE的区别 |
