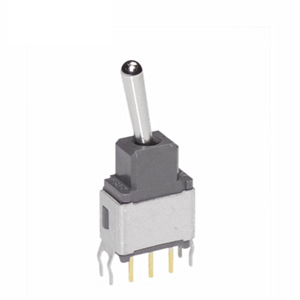

A12AB

拨动开关, SPDT, 0.4VA, 28VAC/DC, TH

A Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The A Series toggles have not been tested for UL recognition or CSA certification.

得捷:
SWITCH TOGGLE SPDT 0.4VA 28V

e络盟:
拨动开关, SPDT, 0.4VA, 28VAC/DC, TH

艾睿:
The process sealed A12AB toggle switch from NKK Switches is a simple way to power on and off various components of your application. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A12AB toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 10.46 mm long, 23.1 mm tall and 5.84 mm deep.

Allied Electronics:
SWITCH TOGGLE SPDT 0.4VA 28V

Chip1Stop:
Switch Toggle ON None ON SPDT Bat Toggle PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Verical:
Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Powell:
SUBMINIATURE TOGGLE/PC
