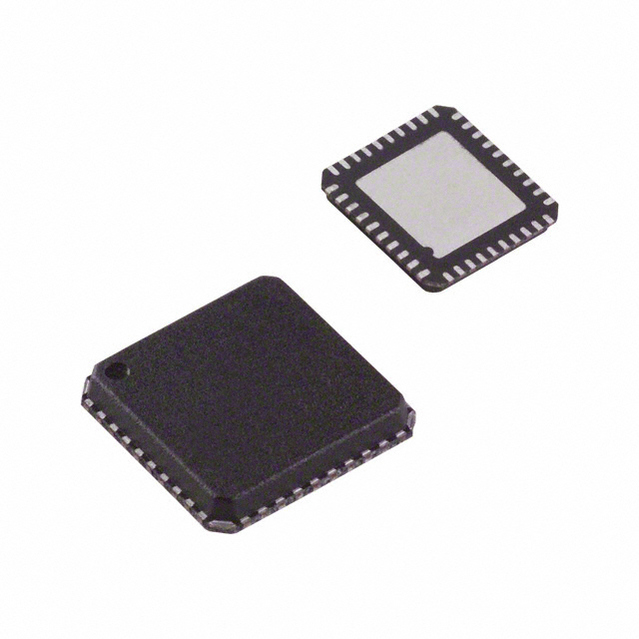

ANALOG DEVICES ADM1069ACPZ 定序器/监控器, 可编程复位, 8监视器, 3V-14.4V输入, LFCSP-40
This power supply sequencer voltage monitor IC from Analog Devices makes protecting components in your circuit easy. The component will be shipped in tray format. It has a minimum reset threshold voltage of 0.573 V and a maximum of 1.375 V. This voltage supervisor IC has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 3 V and a maximum of 6 V.
电源电压DC 3.00V min
供电电流 6 mA
针脚数 40
阈值电压 573 mV
分辨率Bits 12.0
复位电压Min 0.573 V
复位电压Max 1.375 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 6V
电源电压Max 14.4 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 40
封装 LFCSP-40
高度 0.83 mm
封装 LFCSP-40
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1069ACPZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1069ACPZ-REEL7 亚德诺 | 类似代替 | ADM1069ACPZ和ADM1069ACPZ-REEL7的区别 |
ADM1069ACPZ-REEL 亚德诺 | 功能相似 | ADM1069ACPZ和ADM1069ACPZ-REEL的区别 |
