A18AH

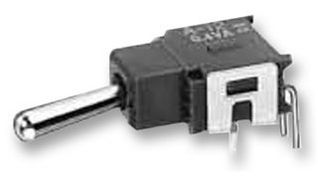

Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

A Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The A Series toggles have not been tested for UL recognition or CSA certification.

得捷:
SWITCH TOGGLE SPDT 0.4VA 28V

艾睿:
Use this process sealed A18AH toggle switch from NKK Switches as a way to toggle the power on one of your components. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A18AH toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 9.8 mm long, 6.18 mm tall and 24.18 mm deep.

Allied Electronics:
SWITCH TOGGLE SPDT 0.4VA 28V

Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Toggle PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Verical:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Newark:
# NKK SWITCHES  A18AH  Toggle Switch, Non Illuminated, SPDT, On-Off-On, Through Hole

Powell:
SUBMINIATURE TOGGLE/PC
