A22HP

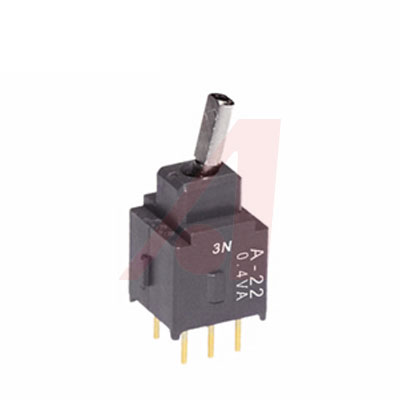

A22HP图片1

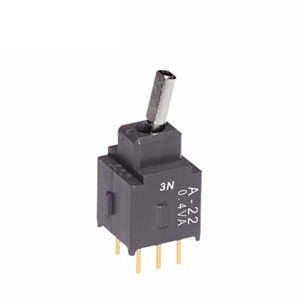

A22HP图片2
A22HP图片3
A22HP图片4
A22HP图片5
A22HP图片6
A22HP图片7
A22HP概述

Switch Toggle ON None ON DPDT Flat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount

A Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The A Series toggles have not been tested for UL recognition or CSA certification.


得捷:
SWITCH TOGGLE DPDT 0.4VA 28V


艾睿:
The process sealed A22HP toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The A22HP toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 9.8 mm long, 19.4 mm tall and 9.2 mm deep.


Allied Electronics:
SWITCH TOGGLE DPDT 0.4VA 28V


Verical:
Switch Toggle ON None ON DPDT Flat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount


Powell:
SUBMINIATURE TOGGLE/PC


A22HP中文资料参数规格
技术参数

额定电压DC 28 V

额定电压AC 28 V

方向 Vertical

触点类型 DPDT

额定电流Max 0.1A @28VAC, 28VDC

额定功率Max 0.4 W

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压DC Max 28 V

额定电压AC Max 28 V

接触电阻Max 50 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 19.4 mm

物理参数

触点材质 Phosphor Bronze

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买A22HP
型号: A22HP
制造商: NKK 日本长野
描述:Switch Toggle ON None ON DPDT Flat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
