ADG788BCPZ-REEL7

2.5欧姆， 1.8V至5.5V ， ？ 2.5V ， -2.5V三/四路SPDT开关芯片规模封装 2.5ohm, 1.8V to 5.5V, 2.5V, -2.5V Triple/Quad SPDT Switches in Chip Scale Packages

Product Details

The ADG786 and ADG788 are low voltage, CMOS devices comprising three independently selectable SPDT single pole, double throw switches and four independently selectable SPDT switches respectively.

Lower power consumption and operating supply range of 1.8 V to 5.5 V and dual ±2.5 V make the ADG786 and ADG788 ideal for battery powered, portable instruments and many other applications. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. An EN input on the ADG786 is used to enable or diable the device. When disabled, all channels are switched OFF.

These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches and very flat over the full signal range. These parts can operate equally well in either direction and have an input signal range which extends to the supplies.

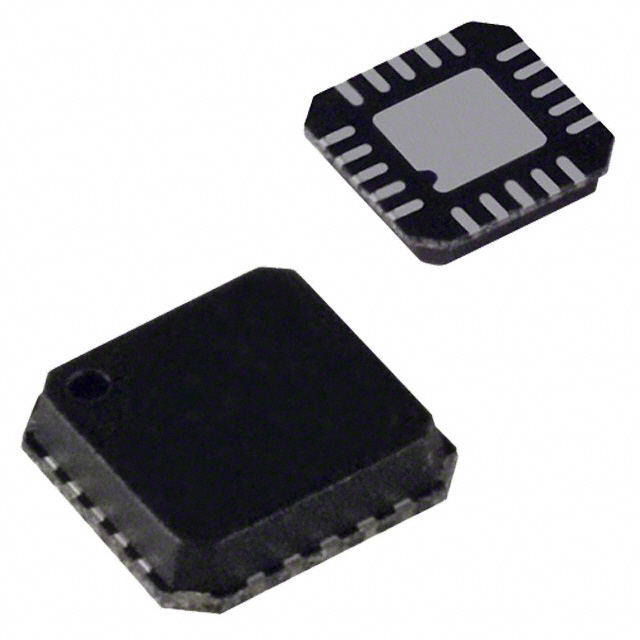

The ADG786 and ADG788 are available in small 20-lead chip scale packages.

**Product Highlights**

.

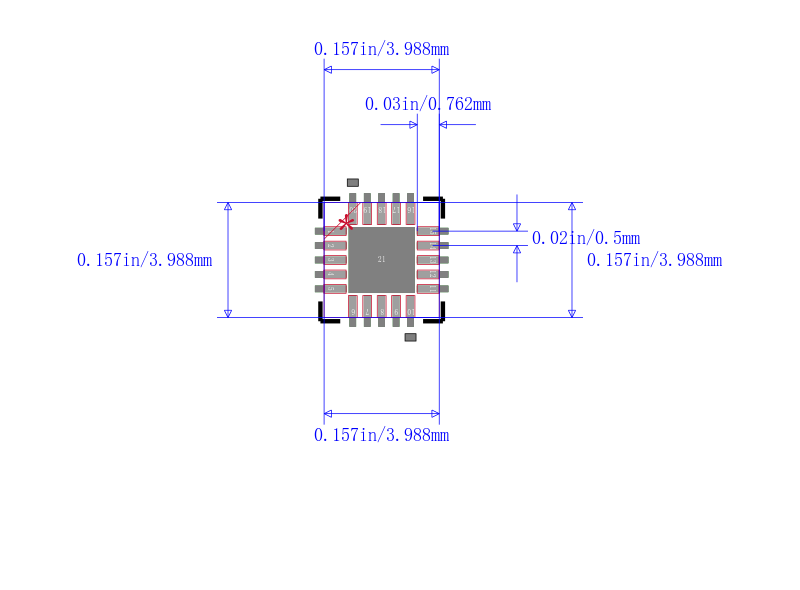

Small 20-Lead 4 mm × 4 mm Chip Scale Packages CSP.

.

Single/Dual Supply Operation. The ADG786 and ADG788 are fully specified and guaranteed with 3 V ± 10% and 5 V ± 10% single supply rails, and ± 2.5 V ± 10% dual supply rails.

.

Low On Resistance 2.5 Ω typical.

.

Low Power Consumption <0.01 μW.

.

Guaranteed Break-Before-Make Switching Action.

**Applications**

.

Data Acquisition Systems

.

Communication Systems

.

Relay Replacement

.

Audio and Video Switching

.

Battery-Powered Systems

### Features and Benefits

.

1.8 V to 5.5 V Single Supply

.

±2.5 V Dual Supply

.

2.5 Ω On Resistance

.

0.5 Ω On Resistance Flatness

.

100 pA Leakage Currents

.

19 ns Switching Times

.

Triple SPDT: ADG786

.

Quad SPDT: ADG788

.

20-Lead 4 mm × 4 mm Chip Scale Packages

.

Low Power Consumption

.

TTL/CMOS-Compatible Inputs

.

For Functionally-Equivalent Devices in 16-Lead TSSOP Packages, See ADG733/ADG734

.

Qualified for automotive applications
