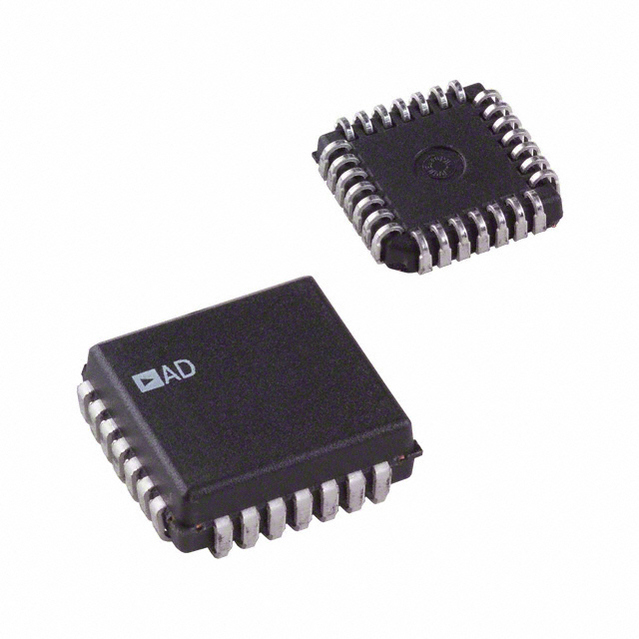

ADG407BP

LC2MOS 8位/ 16通道高性能模拟多路复用器 LC2MOS 8-/16-Channel High Performance Analog Multiplexers

GENERAL DESCRIPTION

The ADG406, ADG407, and ADG426 are monolithic CMOS analog multiplexers. The ADG406 and ADG426 switch one of sixteen inputs to a common output as determined by the 4-bit binary address lines: A0, A1, A2, and A3. The ADG426 has on-chip address and control latches that facilitate microprocessor interfacing. The ADG407 switches one of eight differential inputs to a common differential output as determined by the 3-bit binary address lines A0, A1 and A2. An EN input on all devices is used to enable or disable the device. When disabled, all channels are switched off.

FEATURES

44 V supply maximum ratings

VSS to VDD analog signal range

Low on resistance 80 Ω maximum

Low power

Fast switching

   tON< 160 ns

   tOFF< 150 ns

Break-before-make switching action

APPLICATIONS

Audio and video routing

Automatic test equipment

Data acquisition systems

Battery powered systems

Sample hold systems

Communication systems

Avionics
