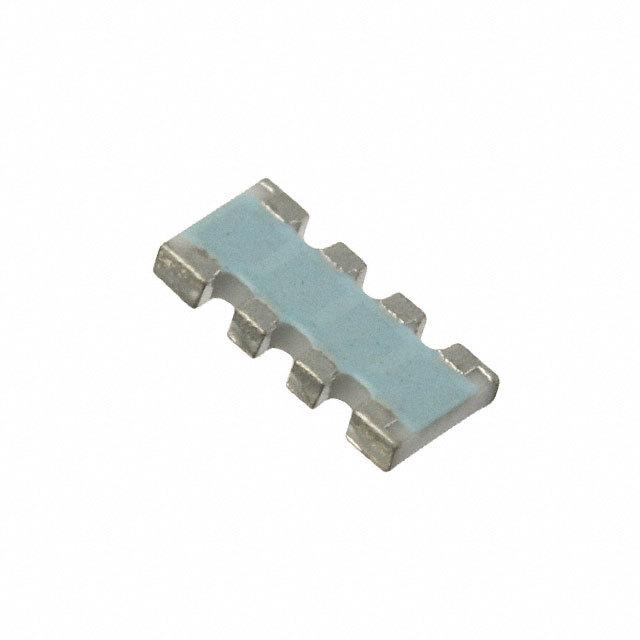

VISHAY ACASA1002E1002P100 精密电阻阵列, 10K
The is a 10kR 125mW 8-pin 4-element Precision Chip Resistor with convex square terminal. The chip resistor array combines the proven reliability of precision thin film chip resistor products with the advantages of chip resistor arrays. Defined relative tolerance matching and relative TCR tracking make this product perfectly suited for applications with outstanding requirements towards stable fixed resistor ratios.
- .
- Advanced thin film technology
- .
- Two pairs or four equal resistor values
- .
- Pure Sn termination on Ni barrier layer
- .
- -55 to 120°C Operating temperature range
额定电压DC 75.0 V
容差 ±0.25 %
额定功率 0.3 W
针脚数 8
电阻 10 kΩ
阻值偏差 ±0.25 %
额定电压 75 V
安装方式 Surface Mount
引脚数 8
封装 0612
长度 3.2 mm
宽度 1.5 mm
高度 0.55 mm
封装 0612
工作温度 -55℃ ~ 125℃
温度系数 ±25 ppm/℃
包装方式 Cut Tape CT
制造应用 电源管理, 工业, 信号处理, 通信与网络, Power Management, Communications & Networking, Industrial, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
