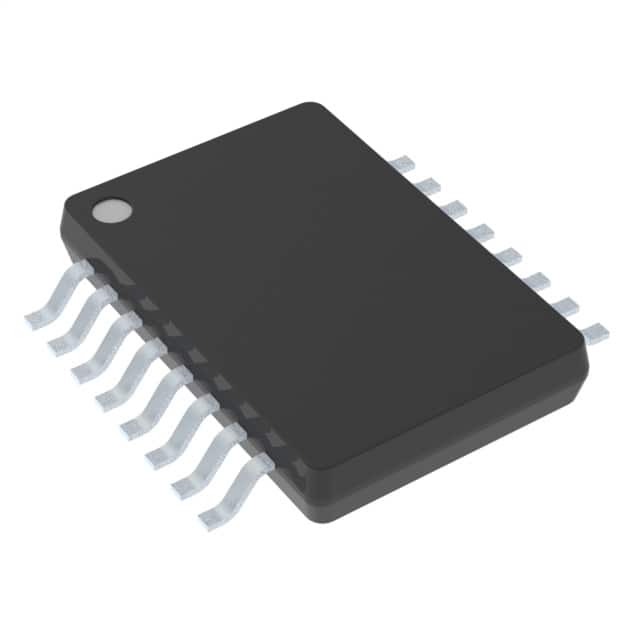

ANALOG DEVICES ADG734BRUZ-REEL7 模拟开关, 四通道, SPDT, 4 放大器, 4.5 ohm, 1.8V 至 5.5V, TSSOP, 20 引脚
The is a single-pole double-throw SPDT quad CMOS Analog Switch exhibits break-before-make switching action preventing momentary shorting when switching channels. It uses an EN input to enable or disable the device. When disabled, all channels are switched OFF. This 2:1 multiplexers/SPDT switch is designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches and is very flat over the full signal range. Its parts can operate equally well in either direction and have an input signal range that extends to the supplies.
输出接口数 8
触点类型 SPDT
供电电流 1 nA
电路数 4
通道数 4
针脚数 20
位数 4
耗散功率 0.00000001 W
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 200 MHz
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.75 V
安装方式 Surface Mount

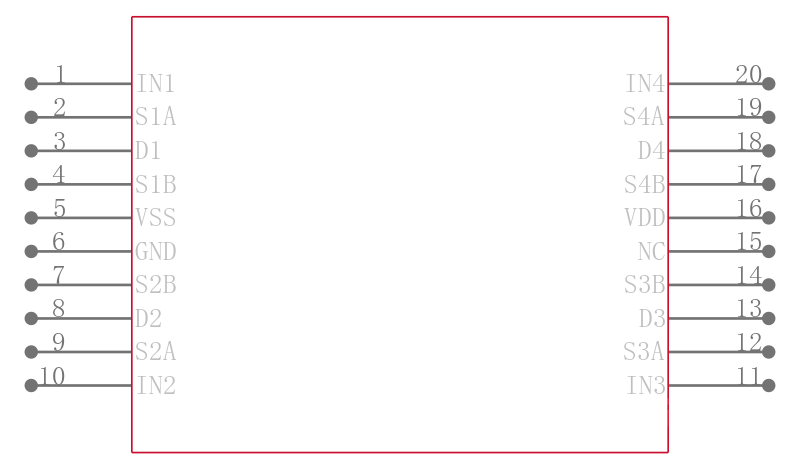

引脚数 20
封装公制 SOP

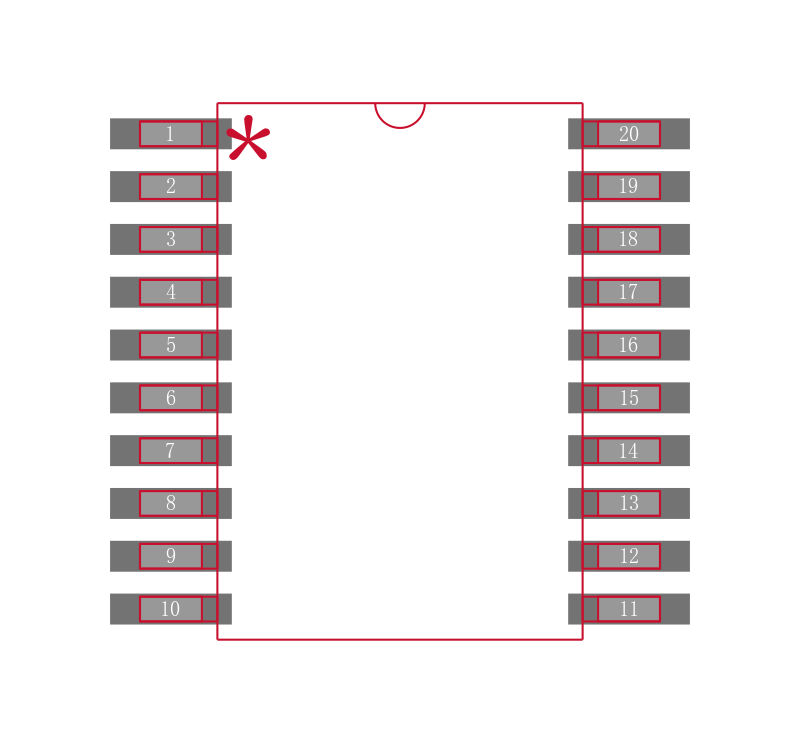

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.05 mm
封装公制 SOP
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 通信与网络, Imaging, Video & Vision, 成像, 视频和目视, Audio, 成像, 视频和目视, Communications & Networking, 音频, Power Management
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADG734BRUZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADG734BRU 亚德诺 | 完全替代 | ADG734BRUZ-REEL7和ADG734BRU的区别 |
ADG734BRU-REEL7 亚德诺 | 完全替代 | ADG734BRUZ-REEL7和ADG734BRU-REEL7的区别 |
ADG788BCP-REEL 亚德诺 | 完全替代 | ADG734BRUZ-REEL7和ADG788BCP-REEL的区别 |
