ADG1207YCPZ-REEL7概述

ANALOG DEVICES  ADG1207YCPZ-REEL7  芯片, 模拟多路复用器, 双路, 8:1, LFCSP-32

Product Details

The ADG1206 and ADG1207 are monolithic iCMOS® analog multiplexers comprising sixteen single channels and eight differential channels, respectively. The ADG1206 switches one of sixteen inputs to a common output, as determined by the 4-bit binary address lines A0, A1, A2, and A3. The ADG1207 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off. When on, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.

The industrial CMOS iCMOS modular manufacturing process combines high voltage complementary metal-oxide semiconductor CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.

The ultralow capacitance and exceptionally low charge injection of these multiplexers make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. There is minimum charge injection over the entire signal range of the device. iCMOS construction also ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.

Applications

.
Audio and video routing
.
Automatic test equipment
.
Data acquisition systems
.
Battery-powered systems
.
Sample-and-hold systems
.
Communication systems

### Features and Benefits

.
<1 pC charge injection over full signal range
.
1.5 pF off capacitance
.
33 V supply range
.
120 Ω on resistance
.
Fully specified at ±15 V/+12 V
.
3 V logic-compatible inputs
.
Rail-to-rail operation
.
Break-before-make switching action
.
28-lead TSSOP and 32-lead, 5 mm × 5 mm LFCSP
ADG1207YCPZ-REEL7中文资料参数规格
技术参数

输出接口数 2

供电电流 260 µA

电路数 2

通道数 2

针脚数 32

耗散功率 6.3 mW

带宽 490 MHz

输入数 16

工作温度Max 125 ℃

工作温度Min -40 ℃

3dB带宽 490 MHz

封装参数

安装方式 Surface Mount

引脚数 32

封装 LFCSP-32

外形尺寸

长度 5 mm

宽度 5 mm

高度 0.83 mm

封装 LFCSP-32

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

ADG1207YCPZ-REEL7引脚图与封装图
ADG1207YCPZ-REEL7引脚图
ADG1207YCPZ-REEL7封装图
ADG1207YCPZ-REEL7电路图

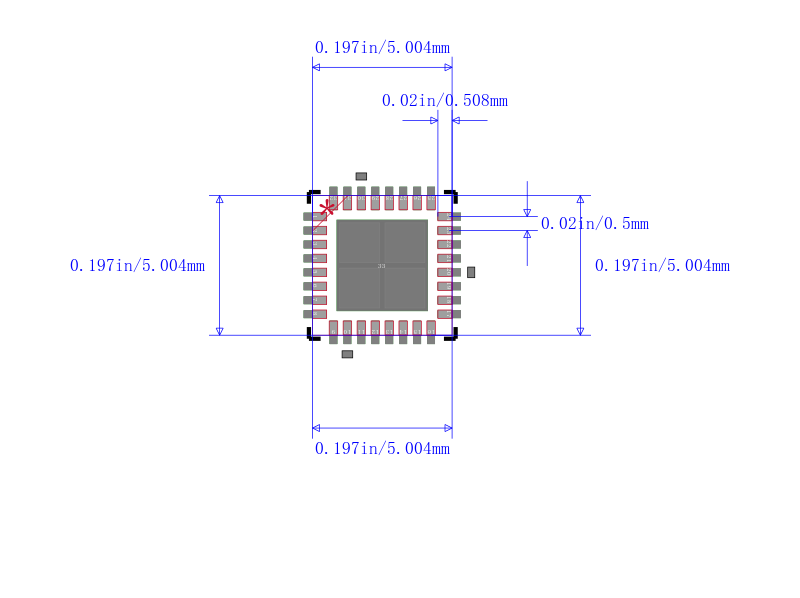

ADG1207YCPZ-REEL7封装焊盘图
