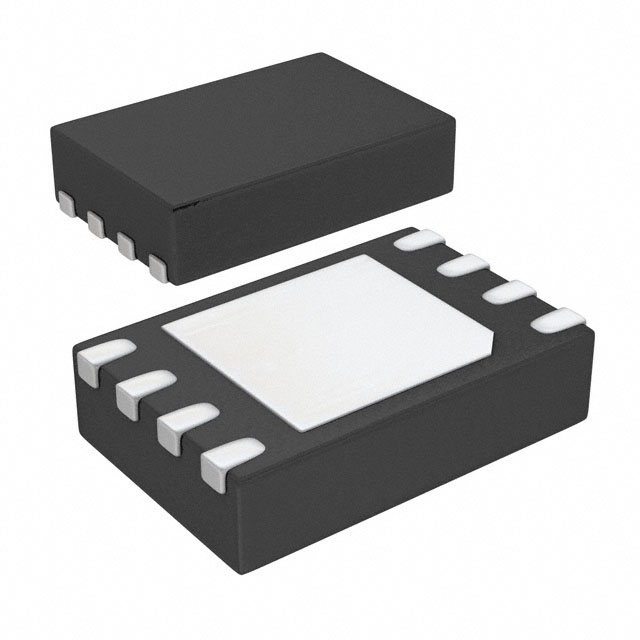

ANALOG DEVICES ADG1419BCPZ-REEL7 芯片, 模拟开关, 单路, SPDT, LFCSP-8
GENERAL DESCRIPTION
The ADG1419 is a monolithic iCMOS® device containing a single-pole/double-throw SPDT switch. An EN input on the LFCSP package is used to enable or disable the device. When disabled, all channels are switched off.
FEATURES
2.1 Ω on resistance
0.5 Ω maximum on resistance flatness at 25°C
Up to 390 mA continuous current
Fully specified at +12 V, ±15 V, ±5 V
No VLsupply required
3 V logic-compatible inputs
Rail-to-rail operation
8-lead MSOP and 8-lead 3 mm × 2 mm LFCSP packages
APPLICATIONS
Automatic test equipment
Data acquisition systems
Battery-powered systems
Relay replacements
Sample-and-hold systems
Audio signal routing
Video signal routing
Communication systems
输出接口数 2
供电电流 120 µA
电路数 1
通道数 1
针脚数 8
耗散功率 2.00 mW
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 135 MHz
电源电压Max 16.5 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 8
封装 LFCSP-8
宽度 3 mm
封装 LFCSP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Digital Multi Meters, 音频, Instrumentation and Measurement, 通信与网络, 成像, 视频和目视, 电源管理, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
