ADG1607BRUZ-REEL7

4.5 Ω RON ， 16通道，差分8通道， ± 5 V ， + 12 V ， + 5 V和3.3 V多路复用器 4.5 Ω RON, 16-Channel, Differential 8-Channel, ±5 V,+12 V,+5 V, and +3.3 V Multiplexers

Product Details

The ADG1606 and ADG1607 are monolithic iCMOS® analog multiplexers comprising of 16 single channels and eight differential channels, respectively. The ADG1606 switches one of 16 inputs to a common output, as determined by the 4-bit binary address lines A0, A1, A2, and A3. The ADG1607 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices enables or disables the device. When disabled, all channels switch off. When enabled, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.

The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical. iCMOS® construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.

**Product Highlights**

1. 7.5 Ω maximum on resistance over temperature.

2. Minimum distortion: THD + N = 0.04%

3. 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.

4. No VL logic power supply required.

**Applications**

.

Communication systems

.

Medical systems

.

Audio signal routing

.

Video signal routing

.

Automatic test equipment

.

Data acquisition systems

.

Battery-powered systems

.

Sample-and-hold systems

.

Relay replacements

### Features and Benefits

.

4.5 Ω typical on resistance

.

1.1 Ω on resistance flatness

.

±3.3 V to ±8 V dual supply operation

.

3.3 V to 16 V single supply operation

.

No VL supply required

.

3 V logic-compatible inputs

.

Rail-to-rail operation

.

Up to 378 mA of continuous current per channel

.

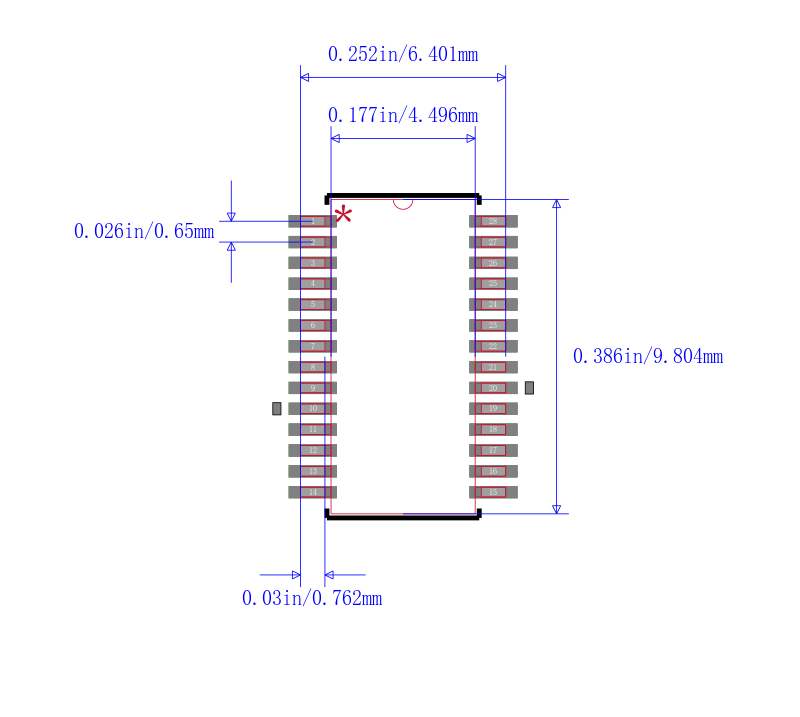

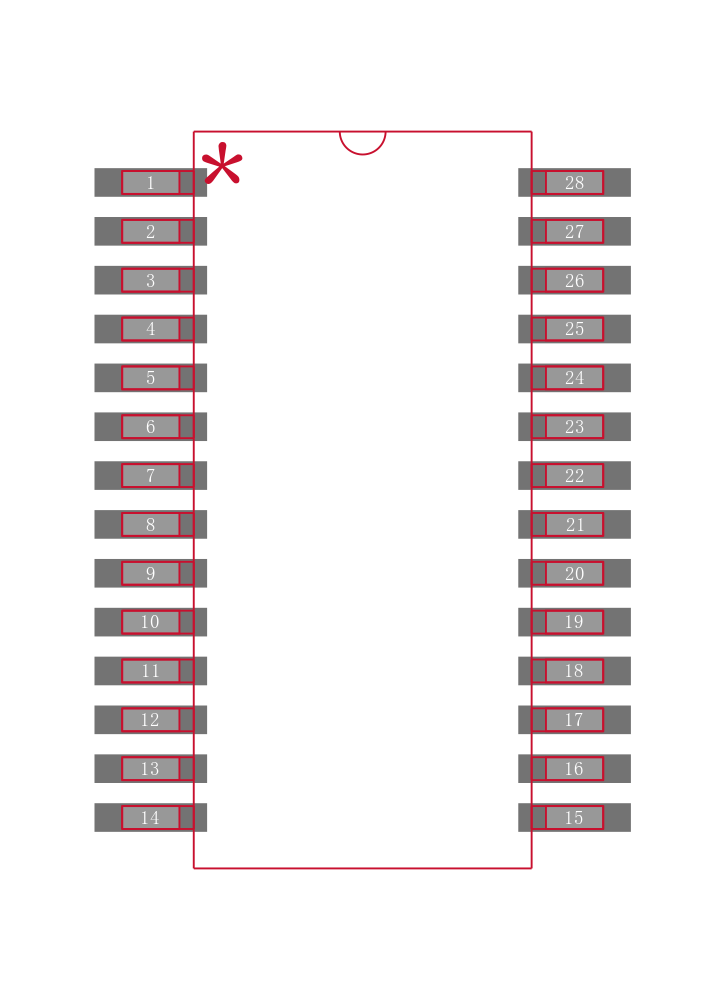

28-lead TSSOP and 32-lead, 5 mm × 5 mm LFCSP
