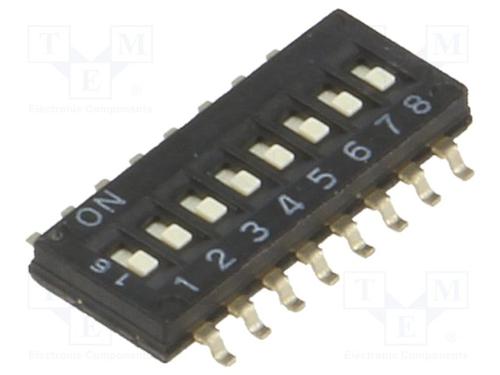

A6H-8102

OMRON ELECTRONIC COMPONENTS  A6H-8102  DIP / SIP开关, SPST, SMD, 8 电路, DIP密封, 24 VDC

超薄型半节距

半节距表面安装 DIL 开关系列。 半节距可缩减安装空间 63%。

半节距，1.55mm 超薄型

配备或不配备胶带密封时均可用

表面安装

触点电阻：200mΩ

绝缘电阻：100MΩ 最小 @ 250V 直流

机械寿命：1000 次操作

符合 RoHs

欧时:
Omron A6H-8102 8位置 滑动 表面安装 DIP 开关, 8P, 25 mA@ 24 V 直流

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

立创商城:
开关

e络盟:
DIP / SIP开关, 8 电路, 滑动式, SMD, SPST, 24 VDC, 25 mA

艾睿:
Look no further! The A6H-8102 dual in-line package switch, developed by Omron, can allow you to control multiple different paths on a printed circuit. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The A6H-8102 DIP switch has a gull wing termination style. This product is 11.39 mm long, 1.55 mm tall and 6.7 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 1.27 mm.

Chip1Stop:
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

TME:
Switch: DIP-SWITCH; Poles number:8; ON-OFF; 0.025A/24VDC; 100MΩ

Verical:
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Stick

Newark:
# OMRON ELECTRONIC COMPONENTS  A6H-8102  DIP / SIP Switch, Flush Slide, 8 Circuits, SPST, SMD, DIP Sealed, 24 VDC

MASTER:
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Online Components:
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Electro Sonic:
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
