ADG1604BCPZ-REEL

1 Ω典型导通电阻， ± 5 V ， + 12V ， + 5V和+ 3.3V ， 4 ： 1多路复用器 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V, 4:1 Multiplexer

Product Details

The ADG1604 is a complementary metal-oxide semiconductor CMOS analog multiplexer and switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1, and EN. Logic 0 on the EN pin disables the device. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

The ultralow on resistance of these switches make them ideal solutions for data acquisition and gain switching applications where low on resistance and distortion is critical. The on resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals.

The CMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and batterypowered instruments.

Product Highlights

1. 1.6 Ω maximum on resistance over temperature.

2. Minimum distortion: THD + N = 0.007%.

3. 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.

4. No VL logic power supply required.

5. Ultralow power dissipation: <16 nW.

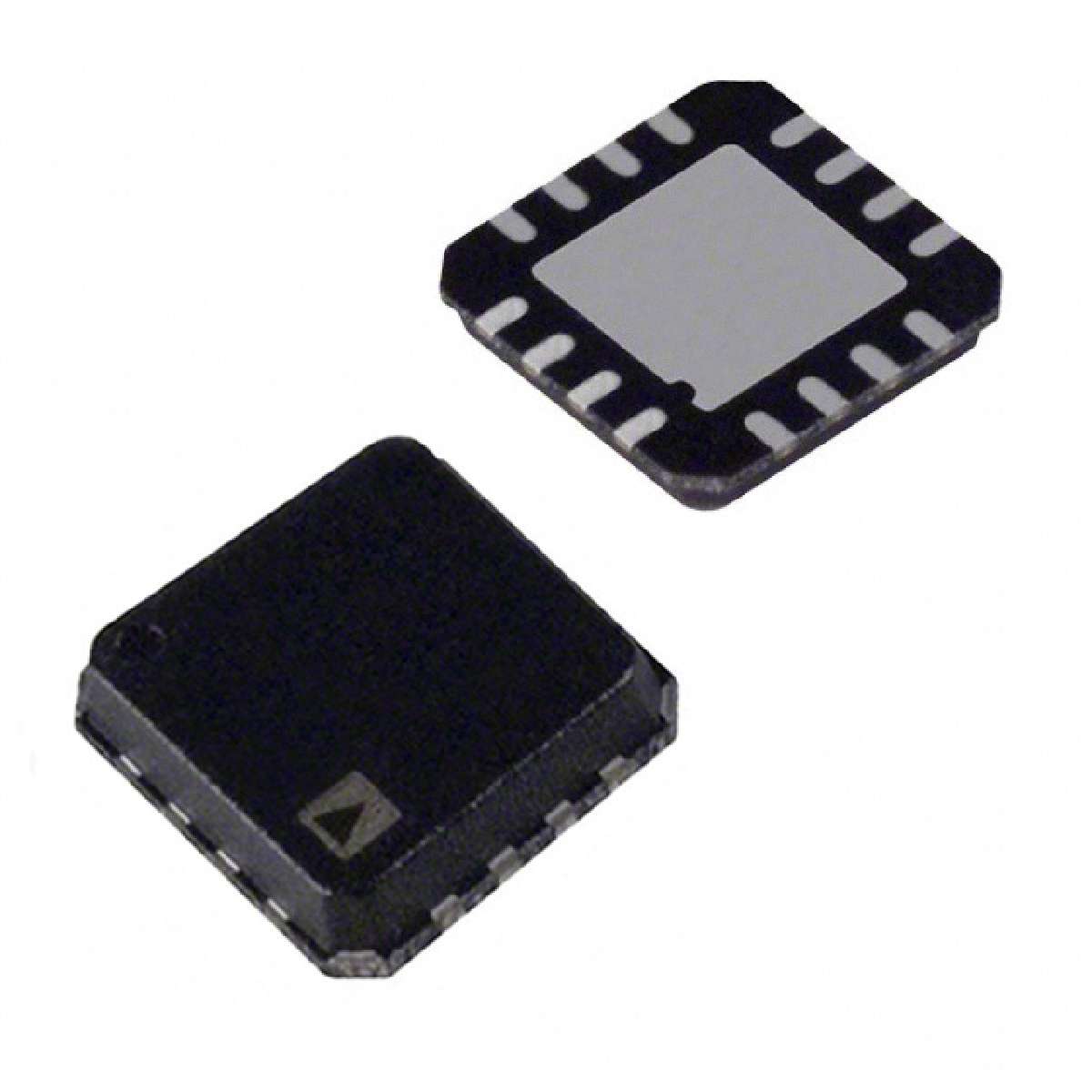

6. 14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP.

Applications

.

Communication systems

.

Medical systems

.

Audio signal routing

.

Video signal routing

.

Automatic test equipment

.

Data acquisition systems

.

Battery-powered systems

.

Sample-and-hold systems

.

Relay replacements

### Features and Benefits

.

1 Ω typical on resistance

.

0.2 Ω on resistance flatness

.

±3.3 V to ±8 V dual-supply operation

.

3.3 V to 16 V single-supply operation

.

No VL supply required

.

3 V logic-compatible inputs

.

Rail-to-rail operation

.

Continuous current per channel

.

LFCSP: 504 mA

.

TSSOP: 315 mA

.

14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP
