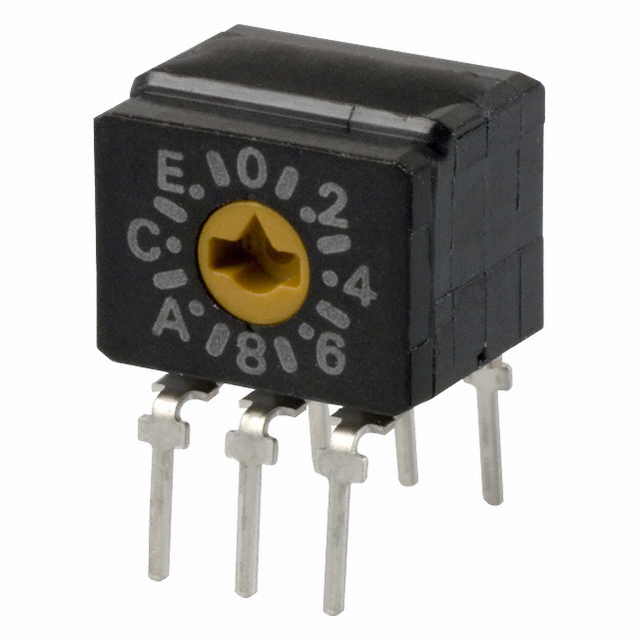

A6CV-10R

OMRON ELECTRONIC COMPONENTS  A6CV-10R  旋转开关, A6C系列, 不发光, 36 °, 100 mA, 250 V

DIL 密封旋转 - 薄型

内部密封，防止清洁液和其它污染物进入

薄型 - 4.5mm，用于顶部驱动型

触点额定值：1 至 100mA，5 至 30V 直流

触点电阻：200mΩ

机械寿命：>104 次操作

工作温度：-20 至 +80°C

焊接温度：最高 350°C，时间最长为 3 秒（手动焊接）或者最高 260°C，时间最长为 5 秒（自动焊接）

镀金触点

得捷:
SWITCH ROTARY DIP BCD 100MA 30V

欧时:
开关,DIL,旋转,低剖面,小 型,侧�

e络盟:
旋转开关, 10路, 1位, 36 °, 250 V, A6C系列

艾睿:
This A6CV-10R dual in-line package switch from Omron can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SP10T configuration. This DIP switch has an operating temperature range of -20 °C to 70 °C. The A6CV-10R DIP switch has a PC pin termination style. This product is 9 mm long, 9.1 mm tall and 7.62 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC.

Allied Electronics:
10 Way Through Hole DIP Switch 10P, Rotary Flush Actuator

Chip1Stop:
Switch DIP SP10T 10 Cross Slot 0.1A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Box

TME:
Encoding switch; DEC/BCD; Positions:10; THT; Rcont max:200mΩ

Verical:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Newark:
# OMRON ELECTRONIC COMPONENTS  A6CV-10R  Rotary Switch, 10 Position, Non Illuminated, A6C Series, 36 °, 100 mA

MASTER:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Electro Sonic:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box
