CMOS 8位/ 16通道模拟多路复用器 CMOS 8-/16-Channel Analog Multiplexers
GENERAL DESCRIPTION
The ADG506A and ADG507A are CMOS monolithic analog multiplexers with 16 channels and dual 8 channels, respectively. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic compatible digital inputs.
PRODUCT HIGHLIGHTS
1\. Single/Dual Supply Specifications with a Wide Tolerance
The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
2\. Extended Signal Range
The enhanced LC2MOS processing results in a high break down and an increased analog signal range of VSS to VDD.
3\. Break-Before-Make Switching
Switches are guaranteed break-before-make so input signals are protected against momentary shorting.
4\. Low Leakage
Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
FEATURES
44 V Supply Maximum Rating
VSS to VDD Analog Signal Range
Single/Dual Supply Specifications
Wide Supply Ranges 10.8 V to 16.5 V
Extended Plastic Temperature Range –408C to +858C
Low Power Dissipation 28 mW max
Low Leakage 20 pA typ
Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages
Superior Alternative to:
DG506A, Hl-506
DG507A, Hl-507
电源电压DC 16.5V max
输出接口数 1
供电电流 600 nA
电路数 1
通道数 16
耗散功率 470 mW
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 470 mW
电源电压Max 16.5 V

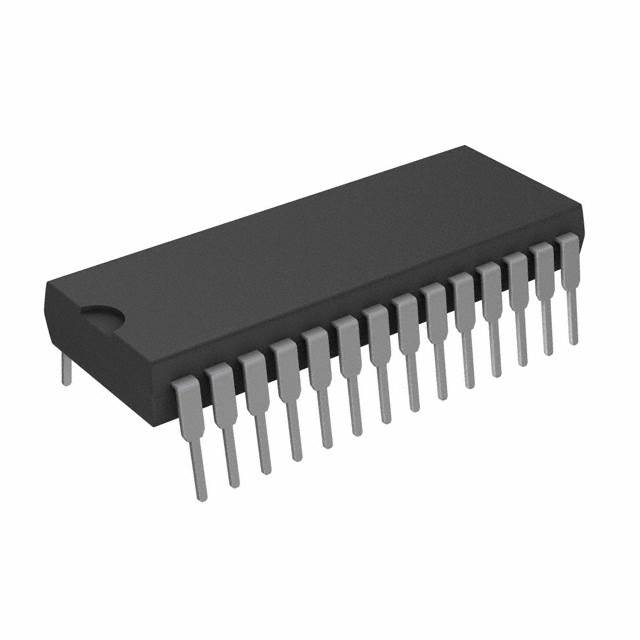

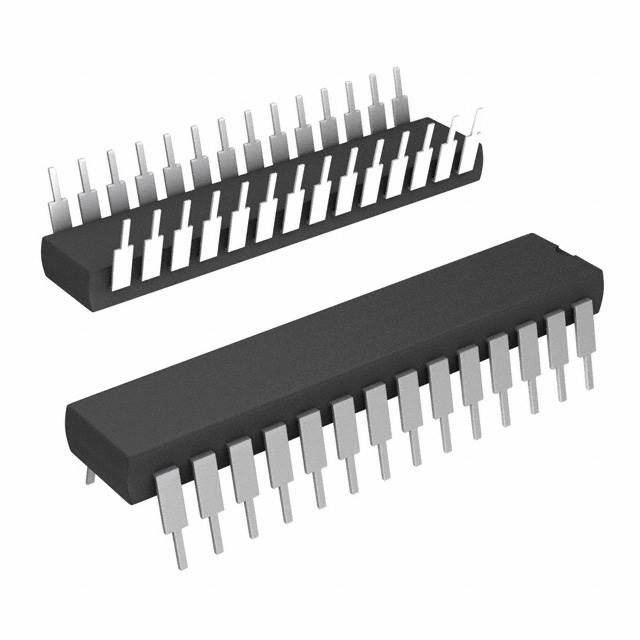

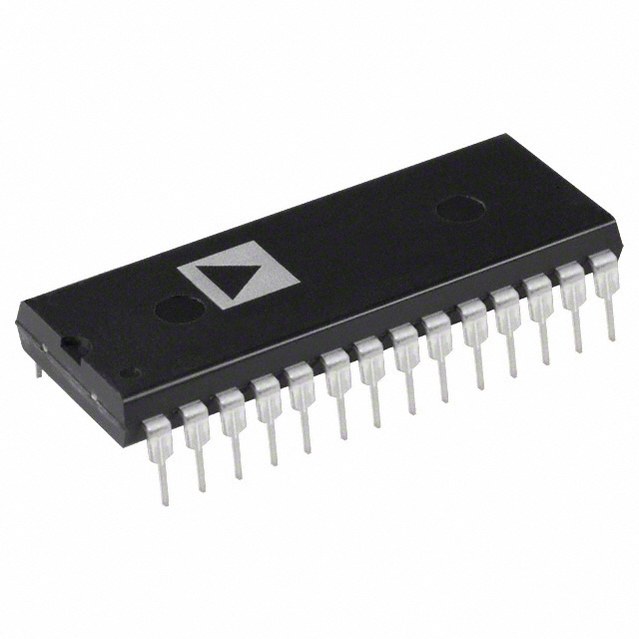

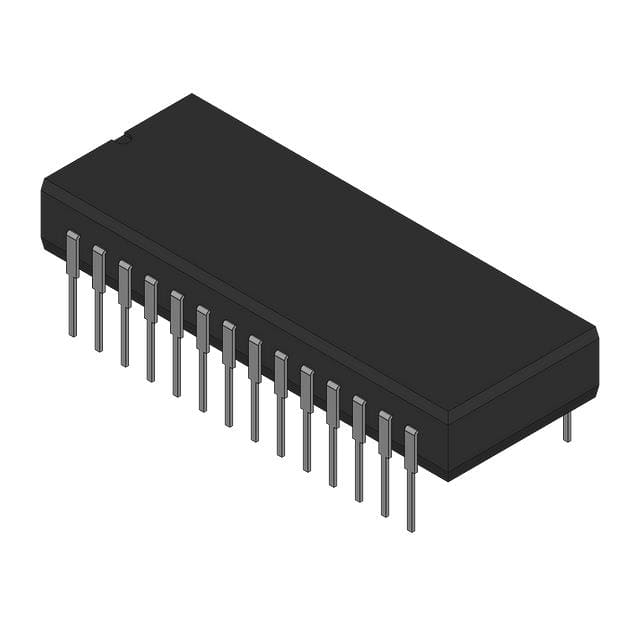

安装方式 Through Hole
引脚数 28
封装 PDIP-28
高度 4.95 mm
封装 PDIP-28
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADG506AKN ADI 亚德诺 | 当前型号 | 当前型号 |
ADG506AKRZ-REEL 亚德诺 | 完全替代 | ADG506AKN和ADG506AKRZ-REEL的区别 |
ADG506AKR 亚德诺 | 完全替代 | ADG506AKN和ADG506AKR的区别 |
ADG506AKRZ 亚德诺 | 类似代替 | ADG506AKN和ADG506AKRZ的区别 |
