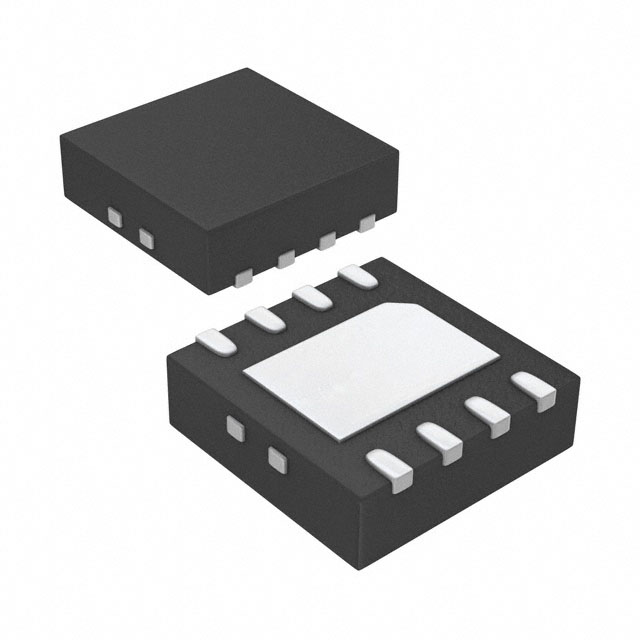

Analog Switch Single SPST 8Pin LFCSP EP T/R
Product Details
The ADG5401 is a monolithic industrial CMOS analog switch containing a latch-up immune single-pole/single-throw SPST switch. The switch conducts equally well in both directions when on, and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked.
The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical. The latch-up immune construction, and high ESD rating, makes these switches more robust in harsh environments.
**PRODUCT HIGHLIGHTS**
1. Trench isolation guards against latch-up. A dielectric trench
separates the P and N channel transistors thereby preventing
latch-up even under severe overvoltage conditions.
2. Low RON.
3. Dual-supply operation. For applications where the analog
signal is bipolar, the ADG5401 can be operated from dual
supplies up to ±22 V.
4. Single-supply operation. For applications where the analog
signal is unipolar, the ADG5401 can be operated from a
single-rail power supply up to 40 V.
5. 3 V logic compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.
6. No VL logic power supply required.
7. Available in 8-lead MSOP package.
**APPLICATIONS**
- .
- High voltage signal routing
- .
- Automatic test equipment
- .
- Analog front-end circuits
- .
- Precision data acquisition
- .
- Amplifier gain select
- .
- Industrial Instrumentation
- .
- Relay replacement
### Features and Benefits
- .
- Latch-up immune under all circumstances
- .
- Human body model HBM ESD rating: 8 kV
- .
- Low on resistance 6.5 Ω
- .
- ±9 V to ±22 V dual-supply operation
- .
- 9 V to 40 V single-supply operation
- .
- 48 V supply maximum ratings
- .
- Fully specified at ±15 V, ±20 V, +12 V, and +36 V
- .
- VSS to VDD analog signal range
