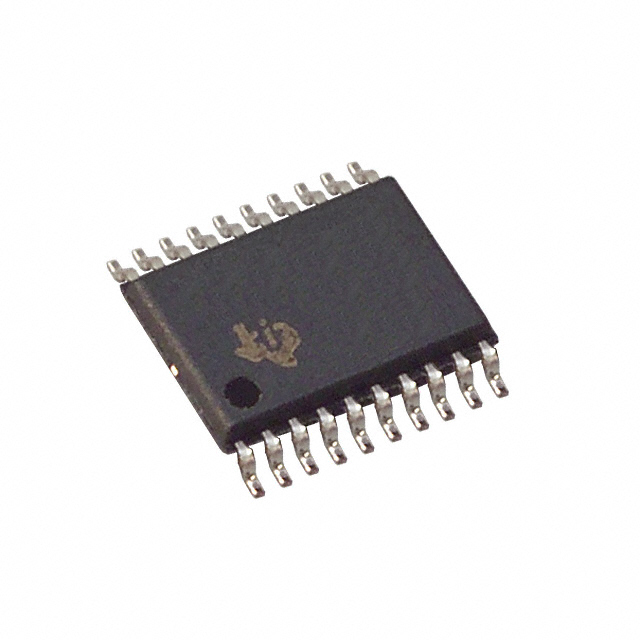

ADG5234BRUZ-RL7图片1

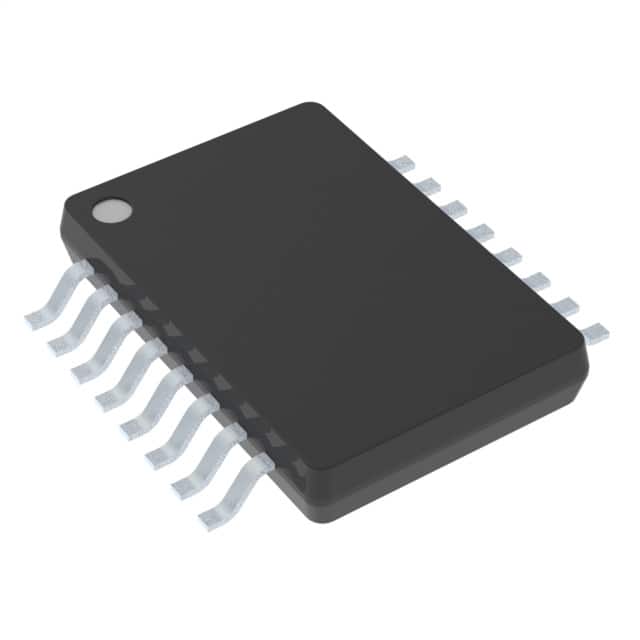

ADG5234BRUZ-RL7图片2
ADG5234BRUZ-RL7图片3
ADG5234BRUZ-RL7图片4
ADG5234BRUZ-RL7图片5
ADG5234BRUZ-RL7图片6
ADG5234BRUZ-RL7图片7
ADG5234BRUZ-RL7概述

高电压闩锁防 High Voltage Latch-Up Proof

GENERAL DESCRIPTION

The ADG5233 and ADG5234 are monolithic industrial CMOS analog switches comprising three independently selectable single-pole, double throw SPDT switches and four indepen dently selectable SPDT switches, respectively.

All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. An EN input on the ADG5233 LFCSP and TSSOP packages is used to enable or disable the device. When disabled, all channels are switched off.

The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.

FEATURES

  Latch-up proof

  4.5 pF off source capacitance

  10 pF off drain capacitance

  −0.6 pC charge injection

  Low on resistance: 160 Ω typical

  ±9 V to ±22 V dual-supply operation

  9 V to 40 V single-supply operation

  48 V supply maximum ratings

  Fully specified at ±15 V, ±20 V, +12 V, and +36 V

  VDD to VSS analog signal range

  Human body model HBM ESD rating

     4 kV I/O port to supplies

     1 kV I/O port to I/O port

     4 kV all other pins

APPLICATIONS

  Automatic test equipment

  Data acquisition

  Instrumentation

  Avionics

  Audio and video switching

  Communication systems

ADG5234BRUZ-RL7中文资料参数规格
技术参数

供电电流 80 µA

电路数 4

耗散功率 1.10 mW

工作温度Max 125 ℃

工作温度Min -40 ℃

3dB带宽 370 MHz

封装参数

安装方式 Surface Mount

引脚数 20

封装公制 SOP

封装 TSSOP-20

外形尺寸

封装公制 SOP

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADG5234BRUZ-RL7引脚图与封装图
ADG5234BRUZ-RL7引脚图
ADG5234BRUZ-RL7封装图
ADG5234BRUZ-RL7电路图
ADG5234BRUZ-RL7封装焊盘图
