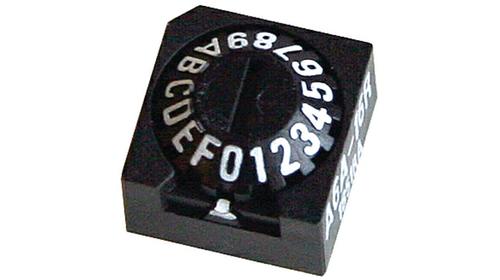

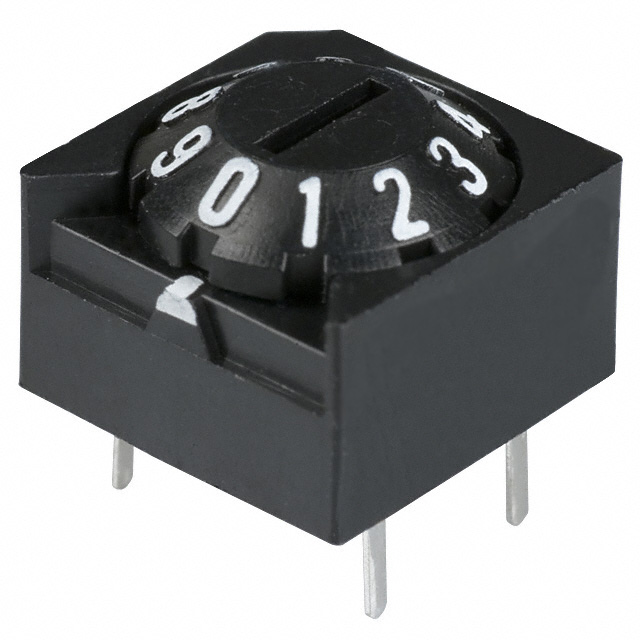

A6A-10R

开关

DIP BCD 位置 通孔 用于工具旋转 触动器 100mA 28VDC

得捷:
SWITCH ROTARY DIP BCD 100MA 28V

立创商城:
开关

贸泽:
DIP Switches / SIP Switches BCD STD ROTARY

艾睿:
The A6A-10R dual in-line package switch, developed by Omron, can give you electronic flow control within your printed circuit board. It has a SP10T configuration. This device has a maximum current rating of 0.1 A @ 28VDC. This DIP switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The A6A-10R DIP switch has a PC pin termination style. This product is 10 mm long, 7.5 mm tall and 10 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 28 VDC.

Allied Electronics:
ROTARY DIP SWITCH BCD TYP0-9 28V

Chip1Stop:
Switch DIP SP10T 10 Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

TME:
Encoding switch; DEC/BCD; Positions:10; THT; Rcont max:200mΩ

Verical:
Switch DIP N.O./N.C. SP10T 10 Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Newark:
# OMRON ELECTRONIC COMPONENTS  A6A-10R  Rotary Switch,STRAIGHT,BCD,ON-ON,Number Of Positions:10,PC TAIL Terminal,ROTARY SCREW,PCB Hole Count:5

MASTER:
Switch DIP N.O./N.C. SP10T 10 Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Electro Sonic:
Switch DIP N.O./N.C. SP10T 10 Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box
