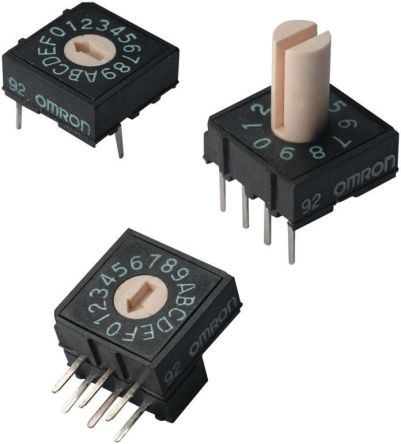

A6R-102RF

OMRON ELECTRONIC COMPONENTS  A6R-102RF  旋转编码开关, A6R系列, 通孔安装, 10路, 24 VDC, BCD, 25 mA

DIP 密封旋转 IP60

一系列低成本印刷电路板安装旋转 DIP 开关。 系列包括带有扁平或心轴型号的顶部或侧面执行器。

转子具有 O 形环密封结构，可防止污垢和灰尘进入 IP60

符合 RoHs

10 或 16 路切换位置

触点额定值：在 24V 交流时为 25mA

触点电阻：200mΩ 最大

绝缘电阻：100MΩ 最小 @ 250V 直流

电气寿命：最少 5000 步

工作温度：-25 至 +80°C

2.54mm 引脚间距

### 印刷电路板安装

印迹/引脚间距：引脚间距 2.54mm，行距 5.08mm

欧时:
Rotary DIP sw BCD,3x3 term, top-flat

得捷:
SWITCH ROTARY DIP BCD 25MA 24V

立创商城:
开关

e络盟:
旋转编码开关, A6R系列, 通孔安装, 10路, 24 VDC, BCD, 25 mA

艾睿:
This A6R-102RF dual in-line package switch from Omron can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SP10T configuration. This DIP switch has a minimum operating temperature of -25 °C and a maximum of 80 °C. The A6R-102RF DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 9.8 mm long, 4.5 mm tall and 9.9 mm deep.

安富利:
Switch DIP SP10T 10 Flush Screwdriver 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP SP10T 10 Flush Screwdriver 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

TME:
Encoding switch; DEC/BCD; Positions:10; THT; Rcont max:200mΩ

Verical:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

Newark:
# OMRON ELECTRONIC COMPONENTS  A6R-102RF  ROTARY DIP SWITCH

儒卓力:
**BCD coded switch 4x1 THT **

MASTER:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
