ADG658YRQZ-REEL7概述

Multiplexer Switch ICs 8:1 210MHz 45Ω CMOS

Product Details

The ADG658 and ADG659 are low voltage, CMOS analog multiplexers comprised of eight single channels and four differential channels, respectively. The ADG658 switches one of eight inputs S1–S8 to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. The ADG659 switches one of four differential inputs to a common differential output, as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices enables or disables the device. When disabled, all channels are switched off.

These devices are designed on an enhanced process that provides lower power dissipation yet gives high switching speeds. These devices can operate equally well as either multiplexers or demultiplexers and have an input range that extends to the supplies. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. All digital inputs have 0.8 V to 2.4 V logic thresholds, ensuring TTL/CMOS logic compatibility when using single +5 V or dual ±5 V supplies.

The ADG658 and ADG659 are available in 16-lead TSSOP/QSOP packages and 16-lead 4 mm × 4 mm LFCSP packages.

**Product Highlights**

1. Single- and dual-supply operation. The ADG658 and ADG659 offer high performance and are fully specified and guaranteed with ±5 V, +5 V, and +3 V supply rails.

2. Automotive temperature range −40°C to +125°C.

3. Low power consumption, typically <0.1 μW.

4. 16-lead 4 mm × 4 mm LFCSP packages, 16-lead TSSOP package and 16-lead QSOP package.

**Applications**

.
Automotive applications
.
Automatic test equipment
.
Data acquisition systems
.
Battery-powered systems
.
Communication systems
.
Audio and video signal routing
.
Relay replacement
.
Sample-and-hold systems
.
Industrial control systems

### Features and Benefits

.
±2 V to ±6 V dual supply
.
2 V to 12 V single supply
.
Automotive temperature range −40°C to +125°C
.
<0.1 nA leakage currents
.
45 Ω on resistance over full signal range
.
Rail-to-rail switching operation
.
Single 8-to-1 multiplexer
.
16-lead LFCSP/TSSOP/QSOP packages
.
Typical power consumption <0.1 μW
.
TTL/CMOS compatible inputs

**ADG658-EP supports defense and aerospace applications AQEC standard**

.
Download ADG658-EP data sheet pdf
.
Military temperature range: −55°C to +125°C
.
Controlled manufacturing baseline
.
One assembly/test site
.
One fabrication site
.
Enhanced product change notification
ADG658YRQZ-REEL7中文资料参数规格
技术参数

输出接口数 1

触点类型 DPST-NC

电路数 1

通道数 8

耗散功率 10.0 µW

带宽 210 MHz

输入数 8

工作温度Max 125 ℃

工作温度Min 40 ℃

3dB带宽 210 MHz

封装参数

安装方式 Surface Mount

引脚数 16

封装 QSOP-16

外形尺寸

长度 5 mm

宽度 3.91 mm

高度 1.65 mm

封装 QSOP-16

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

ADG658YRQZ-REEL7引脚图与封装图

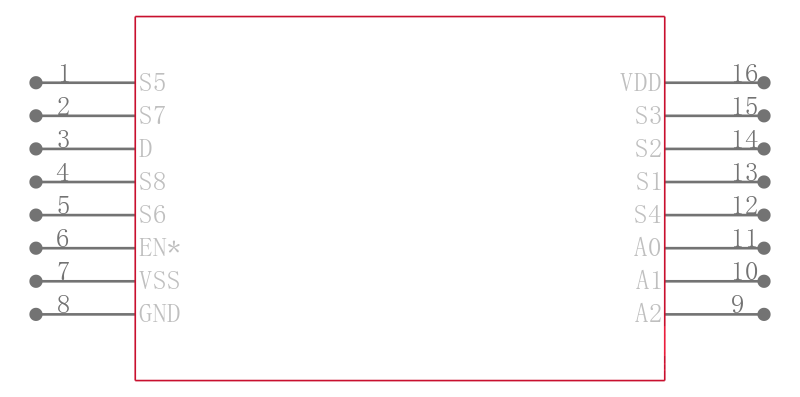

ADG658YRQZ-REEL7引脚图
ADG658YRQZ-REEL7封装图
ADG658YRQZ-REEL7电路图
ADG658YRQZ-REEL7封装焊盘图
