ADG601BRMZ-REEL7

低导通电阻2.5欧姆最大 Low on resistance, 2.5 OHM maximum

Product Details

The ADG601/ADG602 are monolithic, CMOS single-pole single-throw SPST switches with on resistance typically less than 2.5 Ω. The low on-resistance flatness makes the ADG601/ADG602 ideally suited to many applications, particularly those requiring low distortion. These switches are ideal replacements for mechanical relays because they are more reliable, have lower power requirements, and are available in much smaller package sizes.

The ADG601 is a normally open NO switch, and the ADG602 is a normally closed NC switch. Each switch conducts equally well in both directions when the device is on, with the input signal range extending to the supply rails.

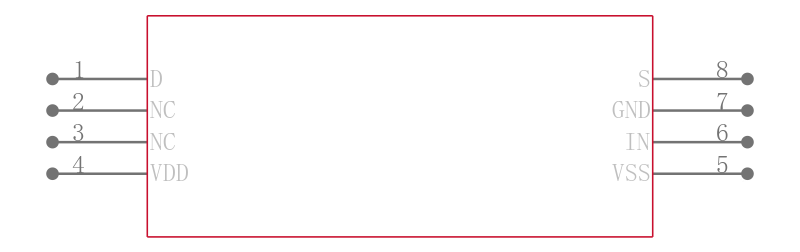

The switches are available in tiny, 6-lead SOT-23; 8-lead MSOP; and 820 μm × 2255 μm die.

**Product Highlights**

1. Low on resistance 2 Ω typical

2. Dual ±2.7 V to ±5.5 V or single +2.7 V to +5.5 V supplies

3. Tiny, 6-lead SOT-23; 8-lead MSOP; and 820 μm × 2255 μm die

4. Rail-to-rail input signal range

**Applications**

.

Automatic test equipment

.

Power routing

.

Communication systems

.

Data acquisition systems

.

Sample-and-hold systems

.

Avionics

.

Relay replacement

.

Battery-powered systems

### Features and Benefits

.

Low on resistance, 2.5 Ω maximum

.

<0.65 Ω on-resistance flatness

.

Dual ±2.7 V to ±5.5 V or single +2.7 V to +5.5 V supplies

.

Rail-to-rail input signal range

.

Tiny, 6-lead SOT-23; 8-lead MSOP; and 820 μm × 2255 μm die

.

Low power consumption

.

TTL-/CMOS-compatible inputs
