ADG619SRJZ-EP-RL7

ANALOG DEVICES  ADG619SRJZ-EP-RL7  模拟开关, 单通道, SPDT, 1 放大器, 6.5 ohm, 2.7V 至 5.5V, ± 2.7V 至 ± 5.5V, SOT-23, 8 引脚

Product Details

The ADG619/ADG620 are monolithic, CMOS single-pole double-throw SPDT switches. Each switch conducts equally well in both directions when the device is on.

The ADG619/ADG620 offer a low on resistance of 4 Ω, which is matched to within 0.7 Ω between channels. These switches also provide low power dissipation, yet result in high switching speeds.

The ADG619 exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The ADG620 exhibits make-before-break action.

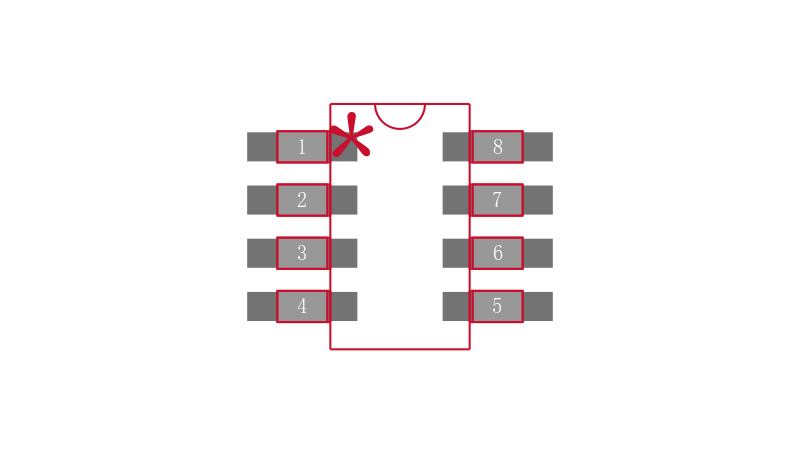

The ADG619/ADG620 are available in an 8-lead SOT-23 and an 8-lead MSOP.

The ADG619-EP support defense and aerospace applications AQEC standard

**Product Highlights**

.

Low on resistance RON: 4 Ω typical.

.

Dual ±2.7 V to ±5.5 V or single 2.7 V to 5.5 V supplies.

.

Low power dissipation.

.

Fast tON/tOFF.

.

Tiny, 8-lead SOT-23 and 8-lead MSOP.

**Applications**

.

Automatic test equipment

.

Power routing

.

Communication systems

.

Data acquisition systems

.

Sample-and-hold systems

.

Avionics Relay replacement

.

Battery-powered systems

### Features and Benefits

.

6.5 Ω maximum on resistance

.

0.8 Ω maximum on-resistance flatness

.

2.7 V to 5.5 V single supply

.

±2.7 V to ±5.5 V dual supply

.

Rail-to-rail operation

.

8-lead SOT-23, 8-lead MSOP

.

Typical power consumption <0.1 μW

.

TTL-/CMOS-compatible inputs

**ADG619-EP supports defense and aerospace applications AQEC standard**

.

Download the ADG619-EP Data Sheet pdf file

.

Military temperature range:

−55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly and test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/11608 DSCC Drawing Number
