ADG604YRUZ-REEL7

1 pC的电荷注入， 100 pA的泄漏CMOS ？ 5 V / 5 V / 3 V 4通道多路复用器 1 pC Charge Injection, 100 pA Leakage CMOS 【5 V/5 V/3 V 4-Channel Multiplexer

Product Details

The ADG604 is a CMOS analog multiplexer, comprising of four single channels. It operates from a dual supply of ±2.7 V to ±5.5 V, or from a single supply of +2.7 V to +5.5 V. The ADG604 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1 and EN. A Logic "0" on the EN pin disables the device.

The ADG604 offers ultra-low charge injection of 1pC and leakage currents of less than 250pA at 85ºC. It offers on-resistance of 85 Ω typ, which is matched to within 8 Ω between channels. The ADG604 also has low power dissipation yet gives high switching speeds. The ADG604 is available in a 14-lead TSSOP package.

### Features and Benefits

.

1 pC Charge Injection

Over the Full Signal Range

.

±2.7 V to ±5.5 V Dual Supply

.

2.7 V to 5.5 V Single Supply

.

Automotive Temperature Range:

–40°C to +125°C

.

100 pA Max @ 25°C Leakage Currents

.

85 O Typ On Resistance

.

Rail-to-Rail Operation

.

Fast Switching Times

.

Typical Power Consumption

<0.1 vW

.

TTL/CMOS Compatible Inputs

.

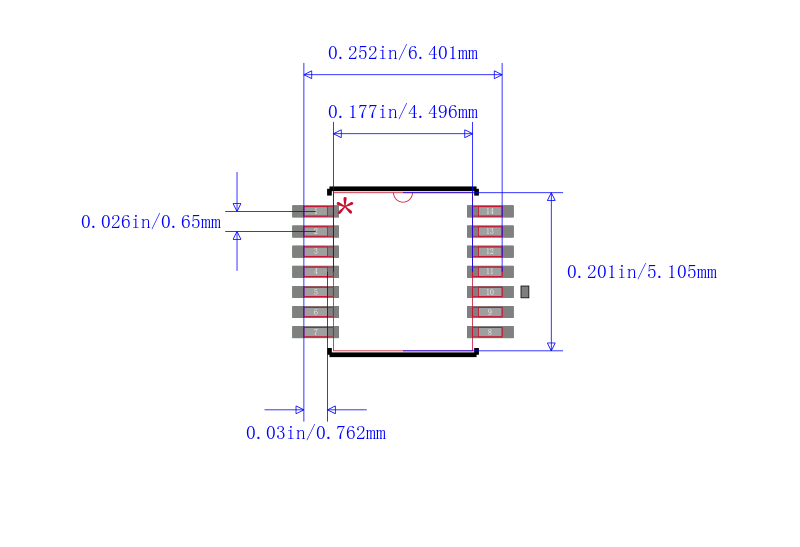

14-Lead TSSOP Package
