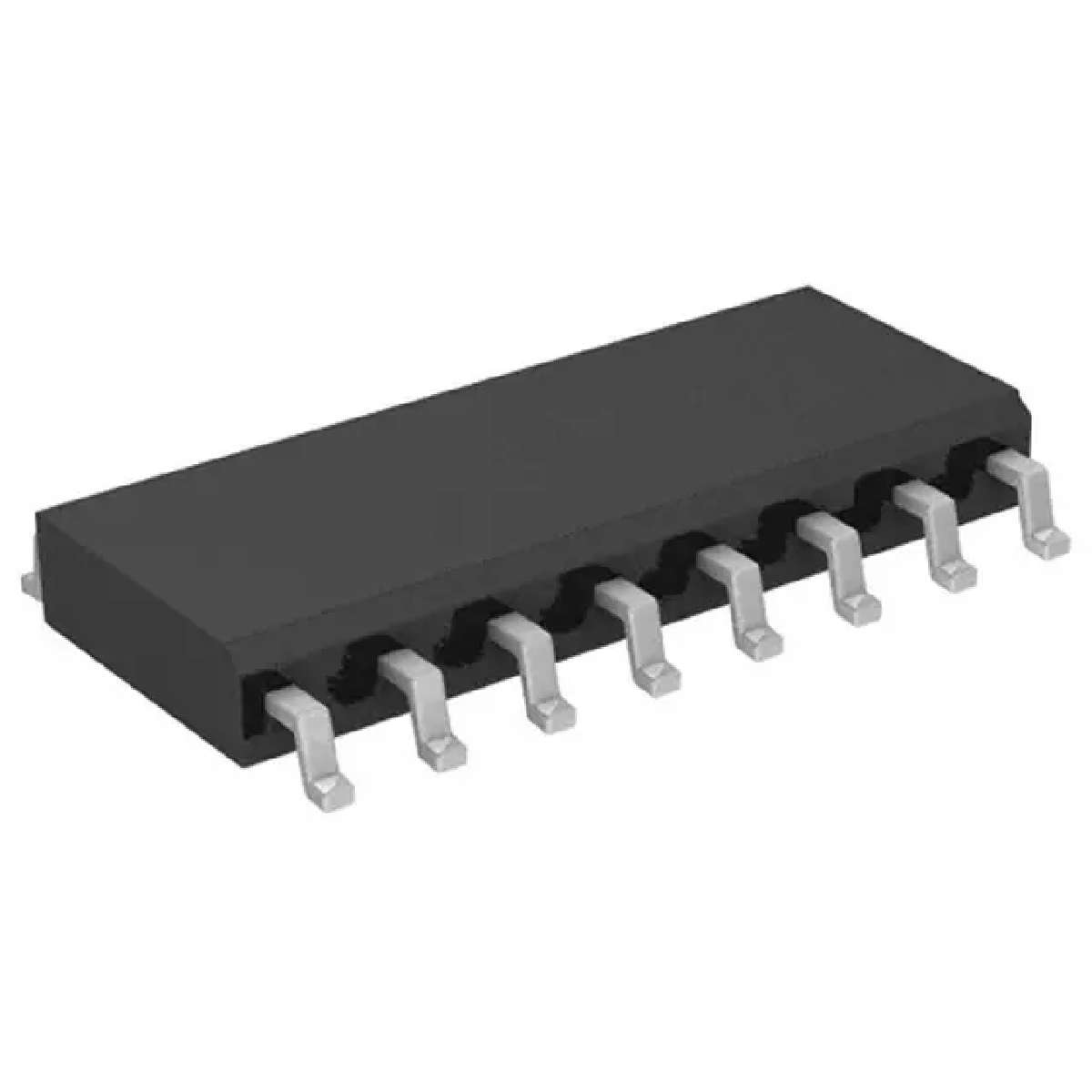

ADG611YRZ图片1
ADG611YRZ图片2
ADG611YRZ图片3
ADG611YRZ图片4
ADG611YRZ图片5
ADG611YRZ图片6
ADG611YRZ图片7
ADG611YRZ图片8
ADG611YRZ图片9
ADG611YRZ概述

模拟开关 IC + -5V Quad SPST NO I70with 1pC

Product Details

The ADG611/ADG612/ADG613 are monolithic CMOS devices containing four independently selectable switches. These switches offer ultralow charge injection of 1 pC over the full input signal range and typical leakage currents of 10 pA at 25°C.

The devices are fully specified for ±5 V, +5 V, and +3 V supplies. Each contains four independent single-pole, single-throw SPST switches. The ADG611 and ADG612 differ only in that the digital control logic is inverted. The ADG611 switches are turned on with a logic low on the appropriate control input, whereas a logic high is required to turn on the switches of the ADG612. The ADG613 contains two switches with digital control logic similar to that of the ADG611 and two switches in which the logic is inverted.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG613 exhibits break-before-make switching action. The ADG611/ADG612/ADG613 are available in a small, 16-lead TSSOP package, and the ADG611 is also available in a 16-lead SOIC package.

**

**

**Product Highlights**

.
Ultralow charge injection 1 pC typically.
.
Dual ±2.7 V to ±5.5 V or single +2.7 V to +5.5 V operation.
.
Automotive temperature range: −40°C to +125°C.
.
Small, 16-lead TSSOP and SOIC packages.

**Applications**

.
Automatic test equipment
.
Data acquisition systems
.
Battery-powered systems
.
Communications systems
.
Sample-and-hold systems
.
Audio signal routing
.
Relay replacement
.
Avionics

### Features and Benefits

.
1 pC charge injection
.
±2.7 V to ±5.5 V dual-supply operation
.
+2.7 V to +5.5 V single-supply operation
.
Automotive temperature range: −40°C to +125°C
.
100 pA maximum at 25°C leakage currents
.
85 Ω on resistance
.
Rail-to-rail switching operation
.
Fast switching times
.
16-lead TSSOP and SOIC packages
.
Typical power consumption: <0.1 μW
.
TTL-/CMOS-compatible inputs
ADG611YRZ中文资料参数规格
技术参数

输出接口数 4

供电电流 1 nA

电路数 4

通道数 4

耗散功率 10.0 µW

输入数 4

工作温度Max 125 ℃

工作温度Min -40 ℃

3dB带宽 680 MHz

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 16

封装公制 SOP

封装 SOIC-16

外形尺寸

封装公制 SOP

封装 SOIC-16

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

数据手册

ADG611YRZ引脚图与封装图
ADG611YRZ引脚图
ADG611YRZ封装图
ADG611YRZ电路图
ADG611YRZ封装焊盘图
