ADG702BRJZ-REEL7

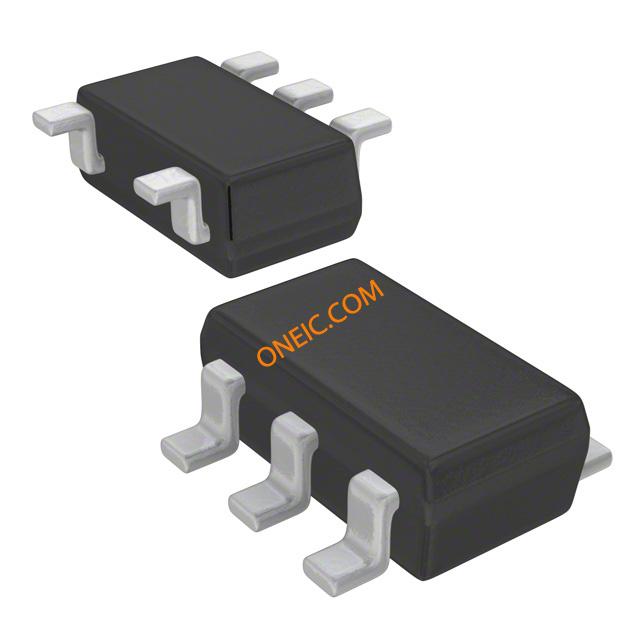

ANALOG DEVICES  ADG702BRJZ-REEL7  芯片, 模拟开关, 单路, SPST, SOT-23-5

Product Details

The ADG702 is a monolithic CMOS SPST switch. It is designed on an advanced submicron process that provides low power dissipation yet high switching speed, low on resistance, low leakage currents and -3 dB bandwidths of greater than 200 MHz can be achieved. The ADG702 can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with Analog Devices" new generation of DACs and ADCs.

### Features and Benefits

.

1.8 V to 5.5 V Single Supply

.

2O Typ On Resistance

.

Low On-Resistance Flatness

.

-3 dB Bandwidth >200 MHz

.

Rail-to-Rail Operation

.

Tiny 6-Lead SOT23 and 8-Lead µSOIC packages

.

Fast Switching Times

tON 18 ns

tOFF12 ns

.

Typical Power Consumption

.

<0.01 µW

.

TTL/CMOS Compatible
